High-Performance Construction Shotcrete Machine Intelligent Drilling Rig Arch Anchor Concrete Spraying Machine

Product Description

Product Description

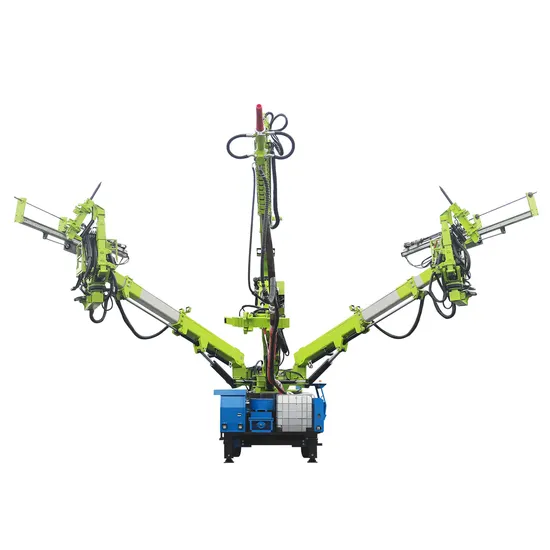

The LGMP350D The intelligent integrated arch anchoring and spraying trolley is a revolutionary piece of machinery designed for the initial tunnel support operations. This cutting-edge equipment is a product of the collaborative efforts between Lanhai Intelligent Installation and Sichuan Luqiao Tunnel Branch. It boasts an advanced engineering chassis equipped with four-wheel drive and four-wheel steering, offering unprecedented maneuverability with front and rear bidirectional driving capabilities. The upper body is meticulously crafted with a three-arm full-sliding structure, complemented by three grab handles, two hanging baskets, two under-excavation hammers, and two anchor lever arms. This innovation ensures a seamless, onsite handling of the entire initial tunnel support process, enhancing construction efficiency while significantly reducing safety hazards and occupational injuries.
Functional Integration: The intelligent integrated arch anchoring and spraying trolley incorporates the entire spectrum of tunnel initial support processes. These include initial spraying, precise measuring and setting points, under-excavation operations, arch frame installation, advanced support, system anchor construction, anchor net installation, and shotcrete operations. This comprehensive functionality ensures superior performance and reliability.
Equipment Digitization (Optional): Our trolley offers optional advanced digital features such as cluster management, precise positioning, video surveillance, walkie-talkie functionality, pre/alarm features, data management, tunnel BIM technology, digital twin, construction report management, tunnel contour scanning, remote control, and more. These capabilities empower site managers with real-time data and control for optimized operations.
Large Amount of Shotcrete: Delivering up to an impressive 50m³/h, this equipment ensures exceptional spraying efficiency while minimizing the risk of pipe clogging, making it a standout performer in its category.
Less Operating Personnel: Our intelligent trolley drastically reduces manpower requirements, allowing the entire construction operation to be efficiently managed by just 3-4 people compared to the traditional need for 8 or more personnel, significantly cutting down labor costs.
Auxiliary Function Integration: Equipped with a breaker hammer and a welding machine, the equipment is capable of performing under-excavation processing and welding operations during arch installation, providing unmatched versatility on the construction site.
High Efficiency: Featuring three powerful arms and three grippers, along with a multi-degree-of-freedom manipulator, our machine offers a maximum grabbing force of up to 3 tons. This robust setup meets all requirements for prefabricated arch installation, various benching method operations, and precise positioning and adjustment. The entire erection process can be accomplished in about an hour, highlighting its superior efficiency.
Installation of Prefabricated Arch Frames: Utilizing our patented multi-frame prefabricated segmented assembly and folding arch frame installation techniques, the arch frames are produced outside the tunnel. This significantly reduces working time on hazardous surfaces and enhances construction safety, while elevating overall operational efficiency to new heights.
Product Parameters

Transport dimensions (L × W × H)	13800×3900×3920mm
Total weight	51t
Engine power	142kW
Installed electrical power	163kW
Operating mode	Electric construction + diesel-powered emergency
Control mode	Wireless remote control + manual control
Operating voltage	380V
Operating range (width × height)	20×14m
Chassis form	Operating chassis
Driving mode	Bidirectional driving (front and rear dual cabs)
Driving and steering methods	Four-wheel drive, four-wheel steering
Minimum ground clearance	400mm
Maximum grade	25%
Turning radius	15m (two wheels) 8m (four wheels)
Maximum speed	25km/h
Approach angle/departure angle	17°/18°
Maximum spraying volume	50m³/h
Maximum particle size for spray aggregate	16mm
Hopper capacity	0.4m³
Capacity of quick-setting agent tank	1m³
Form of quick-setting agent pump	Squeeze pump
Arm support mode	Skid
Arm support quantity	3
Hanging basket mode	Expandable
Number of hanging baskets	2
Number of grippers	3
Maximum lifting capacity of middle arm	3t
Maximum lifting capacity of left and right arms	1.5t
Number of rock drills	2
Power of rock drills	18kW
Maximum drilling depth	4.5m
Drilling diameter	Φ41~Φ102mm
Discharge volume	0.89m³/min
Discharge pressure	0.8MPa
Flow rate	8m³/h
Pressure	20bar
Welding machines	3 sets
Breaking hammers	2 sets
Grouting system	Options

Detailed Photos
FAQ
1, What can you buy from us?
Our elite offerings encompass comprehensive solutions for underground engineering machinery and advanced intelligent mining equipment. Our product suite includes state-of-the-art tunnel boring machines, versatile integrated arch anchoring and spraying trolleys, specialized arch anchoring trolleys, dynamic integrated arch drilling trolleys, efficient arch frame installation trolleys, high-capacity wet spraying rigs, and robust rock drilling rigs. We pride ourselves on delivering seamless integrated total solution services to meet all your needs.
2, What about the MOQ?
The Minimum Order Quantity (MOQ) is 1 set.
3, What payment terms do you accept?
We accept T/T with a 50% prepayment.
4, What about the order lead time?
The standard lead time is typically 15 days.
5, What logistics methods can you use for shipment?
For shipment, we offer truck delivery options for Central Asia and Russia. Additionally, rail and sea shipping methods are available to suit diverse logistical needs.
6, How is your delivery time?
Delivery time via China-Europe trains ranges from 15 to 20 days, while sea shipping typically takes about 2 to 3 months.
7, How about your customer service and after-sales service?
We provide round-the-clock, 24/7 online support. Our dedicated after-sales service is available in Russia and Central Asia, ensuring you receive continuous assistance.

---
