China Good Quality CNC Woodworking CO2 Laser Cutting and Engraving Machine

Product Description

CO2 Laser Cutting and Engraving Machine
Product Description
1300*900mm CO2 laser engraving machine

Characteristics:
1) Japanese technical engine running, making sure the products to run at high aped and high precision.
2) The original binding beeline lead rail, the mechanic is running well and stable.
3) Channel feeding, the feeding can be unlimited.
4) The body of the machine adopts high quality aluminum, professional model and has the specification of strong and not easy for distortion.
5) The main parts of the electrical line adopts the imported materials, the mainly controlled CMOS chip adopts double face CPU.

Applicable materials:
Non-metal materials such as acrylic, double color board, Plexiglas,
Common glass, bamboo and wood, rubber, marble, granite and tiles, leather cloth etc.
Applicable industries:
Advertising industry, Billboards, artistic gifts, crystal ornaments, paper-cut, bamboo
and wooden product, garment and leather, embroidery, decoration and upholster industry.

HIGH PRECISION ,HIGH SPEED ,COMPACT STRUCTURE AND REASONABLE PRICE!

Technical-parameters:

Name:	DLM-1390
Processing area	1300mm*900mm (3feet*2feet)
Laser power	80w or 100w or 130W / Reci laser tube
Laser type:	Co2 glass laser tube
Dimension:	1970mm*1480mm*1150mm
Engraving speed	1-6000mm/min
Cutting speed	1-1000mm/min
Cutting thickness	0-20mm plexiglas (others determined by materials
Resolution ratio	≤0.0125mm
Interface:	USB
Minimum shaping character	letter 0.5mm, Chinese 0.5mm
Support graphic format	DST, PLT, BMP, DXF
Gross power	1000W
Driving mode:	DC0.8A 24V stepper motor
Cooling mode:	Circulation water cooling
Working voltage:	AC220V/50HZ
Packing:	wooden box
Option:	Rotary attachment for column materials
Guarantee time:	1 year, laser tube 6 months
Operation:	Video to tell customer how to operate the machine

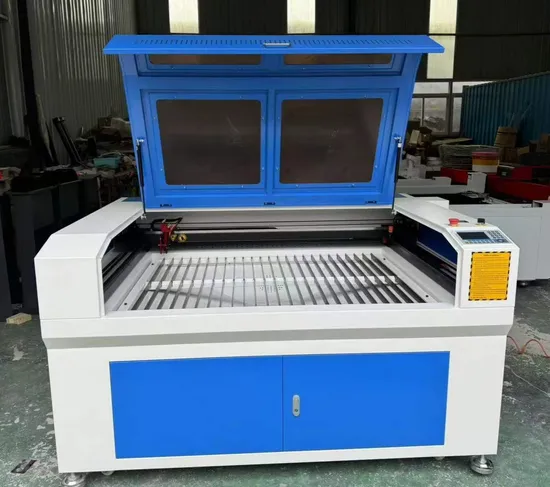

Details of the Machine

---
