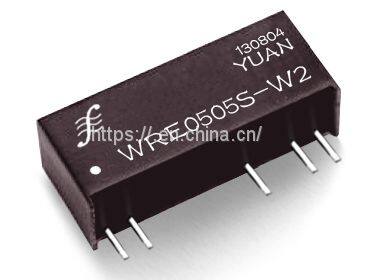

1W High Power Density, Regulated Dual Output DC/DC Converter Wre1509s-1W

Product Details

Product Description

Product Description
1W High Power Density, Regulated Dual Output DC/DC Converter WRE1509S-1W
Features:
Low cost, small size.
high power density and high efficiency.
high galvantic isolation.
no heat sink required.
Regulated dual output.
Fixed input,regulated dual Output
3KV isolation,custom solution available.
Rated 0.1w-2W output dc dc converter.
industrial standard pin-out dc converter
PCB Mounting, flame retardant package material.
Applications:
Electric Power System, Power monitoring,voltage conversion.
dual power isolation in digital communication ports of RS232/485, CAN bus.
power supply isolation in intelligent control, security equipments, telecom,etc.
safety isolation in ground loop elimination, medical equipments and instrument.
Isolation & power supply for analogue electric circuit ( Transmitter & sensors).
Power supply isolation & transfer for safety monitoring and smart building system.
Ground loop interference control.
Car electric circuit power isolation & distribution.
Battery power supply, voltage transfer, power distribution.
PLC, DCS,PC isolation regulated power supply.

Output power range	0.5-3W
nominal input votage range	3.3,5,12,24VDC +-5%
nominal output voltage range	+-5,+-9,+-12,+-15VDC
isolation voltage /output accuracy	3000VAC/+-2%
package	SIP10
Ripple /Noise	50mAP-P(20MHZ bandwidth)
Efficiency	60%-85%
Operation temperature	-40degree to +85degree
Warranty time	two years

---
