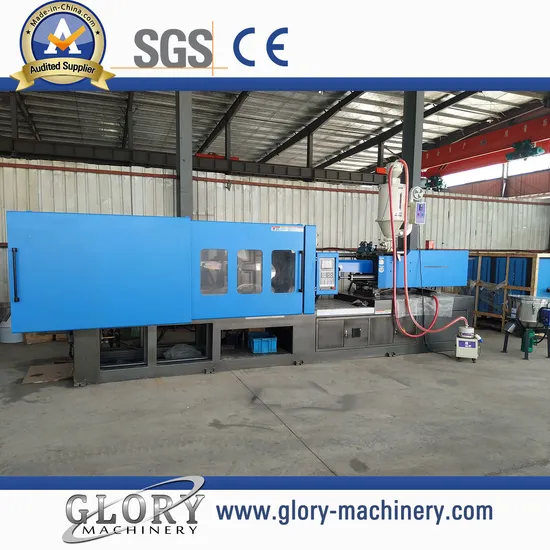

Pet Material Products Injection Moulding Machine

Product Description

Features of the PET perform injection moulding machine
Clamping unit
1.New type 5-point toggle device with the advantage of stable movement curve and gentle shock
2.High-quality mould platen with enough intensity to ensure no out of shape if high-pressure clamping
3.Hard chrome plated high tensile strength tie bars made of superior alloy with a good wear and corrosion resistance ability
4.Wear-resistant guide for moving platen
5.Transducer control clamping stroke
6.Many step control for speed and pressure of clamping and opening
7.Ejection device offer dwell, single, more, vibration function
8.Differential high speed clamping
9.Low pressure mould protection function
10.Hydraulic mould height adjustment drived by gear with rough and fine operation
11.Mechanical and electrical dual safety interlock
12.Automatic centralized lubrication system with far pressure detector
Hydraulic unit
1.proportional pressure and flow control with the advantage of fine adjustment and high precision
2.know-how manifold design, compact, reasonable and fast respond
3.imported world famous hydraulic valves
4.imported world famous hydraulic sealing rings
5.import technology hydraulic hose and fittings
6.low noise hydraulic system
7.oil tank with inner stainless steel container
8.precision oil filter
9.oil cooler
Control unit
1.The computer is imported from Industry family. The LCD displaying screen with high clarity has Chinese and English language to display
2.World famous electrical components
3.Close-loop PID temperature control with the advantage of high precision.
4.Deviation preset between high and low temperature. And break control for temperature sensor.
5.Alarming system in case of cold start and no material in hopper
6.Transducer control the injection and opening stroke to accuracy of ±0.05mm
7.99 steps speed control for increasing and reducing to suit for different technology demands
8.Self-diagnostic and trouble alarm function
9.Parameters lock function to avoid being changed
10.100 sets of production parameters can be stored into the computer memorial software
11.Machine can record the quantity of products and automatically stop if up to the required quantity.
12.Emergency stop device
13.Alarm lamp
Spare parts:
1.Operation Manual
2.Normal hopper
3.Level pad
4.Heater band
5.Mould clip
Technical data for injection moulding machine

Screw diameter	mm	60
Screw L/D	--	21
Shot weight	gram	720
Injection capacity	cm3	791
Injection pressure	kg/cm2	1760
Screw stroke	mm	280
Screw torque	N.m	2000
Heating power	kw	18.5
Clamping force	ton	240
Opening stroke	mm	530
Mould height	mm	200~570
Max daylight	mm	1100
Space between tie bars	mm	555×555
Ejector force/stroke	ton/mm	6.15/130
Oil pump motor	kw	22
Machine size	m	6.2×1.6×2.1
Machine weight	ton	8

Configuration specification

Name	Brand	Origin
hydraulic proportional valve	YUKEN	JA PAN
Hydraulic Oil Pump	HIGH-TECH	TAI WAI
ReversalHydraulicValve	YUKEN	JA PAN
Hydraulic Motor	ZY	Italy-China
Hydraulic Hose	Kim ber lery
Sealing Rings	VALQUA	JA PAN
Computer	JINHUA TECHMATION	TAI WAN
Linear Transducer	MI RAN	CHI NA
Limit Switch	panasonic	JA PAN
Proximity Switch	FORTEK	TAI WAN
Solid State Relay	FORTEK	TAI WAN
Contactor	LG/SCHNEIDER	KOREA/FRANCE
High-temperature Wire		CHINA
Air-break Switch	LG/FUJI	KOREA

GM-0094

---
