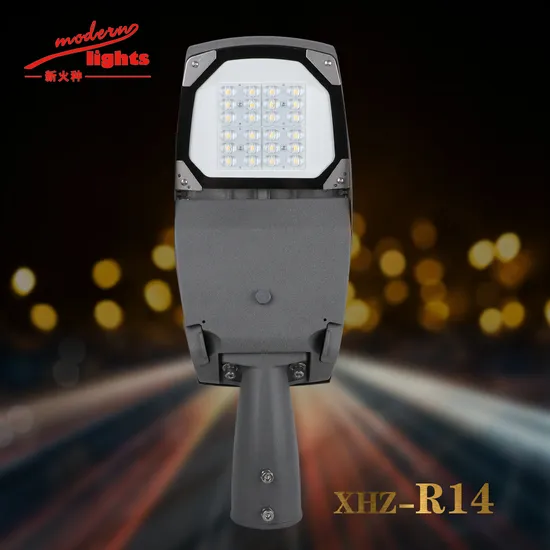

CQC Approved Highway Modern Lights Carton Outdoor Lighting LED Street Lamp

Product Description

Jiangsu Modern Lights Construction Group Co., Ltd
Features
Application
It is mainly applied to the road lighting of urban expressway,secondary trunk road, branch road, factory, school, garden, various residential
communities and courtyards. The installation height is 6-13m and the installation torque is 16Nm.

Product Dimension
Parameter
Model NO. Power(W) Light Source LED QTY (PCS) Lens(PCS) CCT(K) Lumen(lm/W) CRI

R14-15-30W	30	3030(5050)	64/24	4	4000k	140/150	>70
R14-15-40W	40	3030(5050)	64/24	4	4000k	135/145	>70
R14-15-50W	50	3030(5050)	64/32	4	4000k	130/150	>70
R14-15-60W	60	3030(5050)	96/32	4	4000k	130/140	>70
R14-110-80W	80	3030(5050)	144/51	9	4000k	130/150	>70
R14-110-100W	100	3030(5050)	144/54	9	4000k	130/150	>70
R14-120-120W	120	3030(5050)	192/72	12	4000k	130/150	>70
R14-120-150W	150	3030(5050)	192/72	12	4000k	130/140	>70
R14-120-180W	180	3030(5050)	240/90	15	4000k	130/150	>70
R14-120-200W	200	3030(5050)	240/120	15	4000k	130/150	>70
R14-130-250W	250	3030(5050)	384/120	24	4000k	130/150	>70
R14-130-300W	300	3030(5050)	384/144	24	4000k	130/150	>70

Erp Technical Specification Item Symbol specification/Data

Color Index	CRI	Ra>70
Luminous Efficacy	lm/W	130--160 lm/W
Energy efficiency Class	/	A++
Color consistency in level	/	Max.6SDCM
THD	/	<15%
Starting Time	S	<0.5S
Switching cycle before failure	/	>100,000times
Premature failure rate@1000h	/	0
Lifespan	H	>50000Hrs

Installation way
Packaging
Packing Data
Attention
Matters needing attention
Before installing the lighting fixtures, please read this instruction manual carefully.
The lighting fixtures should be installed, connected and tested by a certified electrician based on the local regulations.
Lamps should always be installed or replaced carefully.
Please check the local voltage in accordance with the product requirements before installation.
Revamping only can be done when the power is off and the lamp is completely cooled down.
When clean the lamp, make the power off and let it cool down completely, clean the fixture with a soft cloth and a standard PH neutral detergent, stainless steel should be maintained regularly.
Don't cover the fixtures with flammable materials.
Replace should be made by the manufacturer or his service agent or certified electrician in order to avoid a hazard.
This specification is for reference only,we reserve the right to change without notice.
FAQ
Q1. MOQ and delivery time ?
A: NO MOQ required, sample testing welcome.. Mixed samples are acceptable.
Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q2. How should I pay for my order?
A:We support payment by TT,LC.
Q3. Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q4. How about the shipping method ?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. Will you deliver the right goods as ordered?How can I trust you?
A:Yes, we will.We have a good cooperation with a number of excellent material suppliers, and we will make sure our, products are 100% inspection before packing
Q6. How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution.

---
