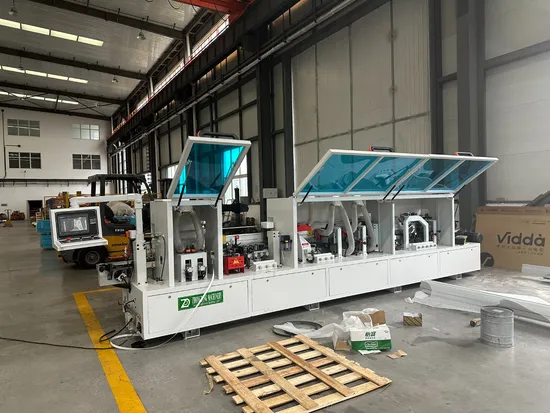

High-Performance CE Certified Automatic MDF Edge Banding Machine

Product Description

Technical Paremeters
ZD800 Economical straight edge banding machine
Fully automatic Support customization
Excellent quality One-year warranty
Our advantages:
As a factory with 20 years of experience, we have been committed to providing customers with the best quality and cost-effective products, so the quality control of the equipment is the top level in the industry. Edge banding machine is the main product of our company, has been widely praised by customers, the main three advantages: high stability of the equipment, high efficiency, good edge banding effect.

Model	ZD800pro
Thickness of banding	0.4-3mm
Width of banding	10-60mm
Thickness of workpiece	10-60mm
Heating power	1.5kw
Feeding motor power	2.2kw
Glue post motor	0.37kw
End trimming motor	0.55*2 kw
Fine trimming motor	0.75*2 kw
Polishing motor	0.18*2 kw
Feeding speed	13m/min
Air pressure	0.7Mpa
Workpiece length	>=100mm
N.W.	1900kgs
Overall dimension	6440*950*1500mm

Product Details

Screen Control Panel Electrical Components

Glue mechanism Pre-milling

End trimming Fine/Rough trimming

Scrapping Buffing
Application
Wide range of applications More scope of application and wider application Meet your different needs

Features
#Touch screen is made from Delta(Taiwan) brand PLC control system and operation panel.
#Pre-milling equipment with double trimming blades works on the waved effect that is caused by precise sliding table saw.
#Glue pot apply the imported bearings and high hardness super wear-resistant glue boxes.
#All edge banding parts are CNC machined, the deviation is controlled within 0.017mm.
#Corner rounding unit to round the 4 corners, is equipped with 2 HF motors, to get a more smoother corner effect.
#Scraping unit for a perfect finishing the edge.
#The buffing device adopts the board processed by cotton polishing wheel, by end polishing to make a more smoothy surface.
#Top brand CHNT Transform control system Delta Brand frequency converter Delta PLC system.
#Taiwan CPG Brand feeding motor,Customized high power,high speed Taiwan brand,power output stable,thermal protection system improves the safety factor.
Company Profile
Qingdao Zhongding Machinery Co., Ltd. is a leading company of specializing in manufacturing and exporting woodworking machine for more than 20 years.We perform a variety of services to not only supply our clients with top quality woodworking machinery but also adequate maintenance,spare parts and technical advice.
We are committed to providing one-stop service for factory production.Replying on the favorable geographical advantages of Qingdao Industrial Park,we have formed a series of panel-type furniture equipment such as table saws,edge banding machines,and CNC routers,as well as solid wood woodworking machines such as:polishing machines,panel machine,press machine etc,which have been exported to lots of countries and regions.We have establish 7 complete system to guarantee all process of orders with timely and effective supervision and feedback.Our company has got ISO9001 international system certificate and CE security certificate for different kind of machines.
