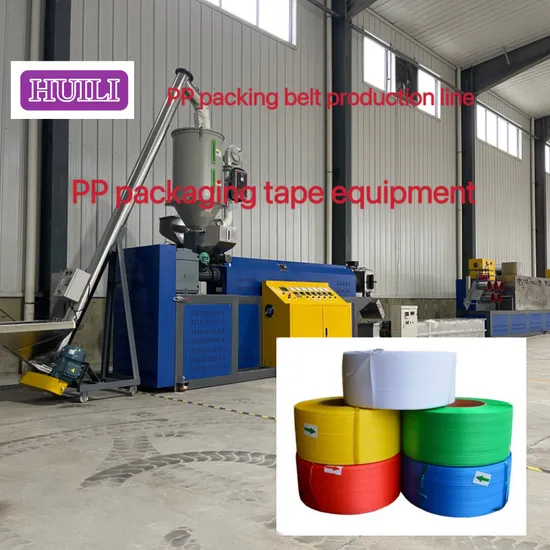

High-Performance PP Extrusion Equipment with PLC Control System

Product Description

https://membercenter.made-in-china.com/productmanage.do?xcase=view&prodId=RZHajSIuhMGQ&queryGroupId=&queryCatCode=&pageSize=30&queryState=-1&prodUpgradeActivity= Product Description
Main components
The PP strapping production line is mainly composed of the following parts:
Feeder----transfers PP polypropylene raw materials to the machine barrel.
Extruder----used for melting and extrusion of plastics.
Die head---- controls the molding of the extruded plastic strip.
Cooling water tank----cools the extruded plastic strip.
Stretching oven---- ensures the stretching ratio of the strip and more uniform plastic molding.
Tractor---- stretches the formed plastic.
Forming oven---- further ensures the stability of the shape of the plastic.
Winding machine---- winds the formed plastic strapping tape into rolls and puts it into storage.
PLC control system----controls the entire machine, specification debugging, and parameter ratio setting.
. PP strapping equipment parameters

Model	PP-2	PP-4	PP-6	PP-8	PP-10	PP-12
Raw material	PP polypropylene new material/recycled material
Number of tapes	2	4	6	8	10	12
Width(mm)	5-19	5-19	5-19	5-19	5-19	5-19
Thickness(mm)	0.4-1.2	0.4-1.2	0.4-1.2	0.4-1.2	0.4-1.2	0.4-1.2
Line speed(m/min)	>260-300
PLC control system	PLC	PLC	PLC	PLC	PLC	PLC
Screw Model	90	110	125	135	135	135
Reducer model	200	220	250	280	280	280
Drying barrel (kg)	100	150	200	200	200	200
Screen Changer	Automatic/Manua
Production capacity 24H	2.5-3T	6-7T	8-9T	10-11T	12-13T	13--14T

Detailed Photos
PP strapping production line features:
1.The accessories are cut by foreign high-quality CNC machine tools and high-precision die parts, so that the product molding quality is stable and the thickness error range is less than the national strapping acceptance standard.
2.The unique five-roller traction system has stable traction, stable equipment operation, reduced failure rate, and reduced later maintenance costs by more than 80%.
3.The unique cooling circulation system and multiple sets of shaping guide rails make the strapping belt cool and shrink better and the size more accurate.

PP packing strap making machine uses high-quality imported components and torque motor-controlled winding machines to produce PP strapping straps with a small error range. It is carefully designed to work seamlessly with fully automatic strapping machines.
PP strapping belt production line can produce PP strapping belts of various raw materials. The finished PP strapping belts have various colors and bright luster, and are suitable for use with fully automatic strapping machines.

FAQ
Q: What is the minimum order quantity of the PP strapping tape production line?
A: MOQ: 1 set
Q: What is the extrusion output of the PP strapping tape production line?
A: 80-600KG/H. Different models have different extrusion capacities.
Q: How many strips can the PP strapping tape production line produce?
A: 1-12 strips
Q: What is the price of the PP strapping tape production line?
A: The price varies for different models and can be negotiated.
Q: What is the voltage of the PP strapping tape production line?
A: Standard: 380V/50HZ, which can be customized according to customer requirements.
Q: How long is the delivery date of the PP strapping tape production line?
A: 30-40 Days

---
