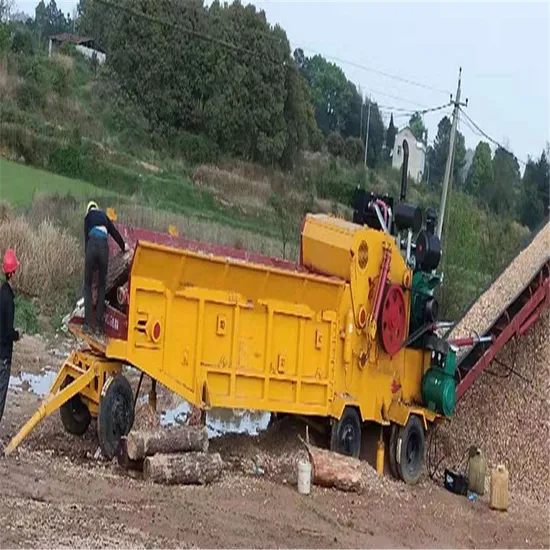

Industrial Wood Chipper Mobile Diesel Hydraulic Branch Tree Crusher

Product Description

Product Description
widely used in the raw material preparing process in the factories of flakeboard, fiberboard, papermaking industriy.
Raw material including branches, twigs, tress,pallets and woodworking remainds (slab, plank, log core, waste veneer)
It also can be used to chip non-lignin raw material (such as flax pole, bulrush, bamboo etc
Product Parameters
Wood Chipper Pallet Shredder Plywood Crusher Root Grinder
Popular and highly trusted in Australia,Chile,Fiji,Guatemala,Indonesia,Italy,Malaysia,
Mauritius,Philippine,Russia,South Africa,Sigapore,Thailand,UAE,UK,USA,Vietnam,Zambia,

Model	WS800	WS1300	WS1400	WS1600	WS1800	WS2000
Feeding Inlet MM	800*500	1300*600	1400*600	1600*600	1800*1000	2000*1350
Blade Roller Diameter MM	850	850	850	850	1200	1350
Capacity Tons/Hour	8-10	12-15	15-20	25-30	40-50	80-100
Fly Knife Quantity PCS	4	4	4	6	6	6
Main Motor Power KW	110	160	200	250	315	450
Feeding Motor KW	7.5+11	7.5+11	7.5+11	11+15	15+22	15+22
Outlet Motor With Gear Box	3 +5.5	5.5+5.5	7.5+7.5	7.5+7.5	7.5+7.5	7.5+11
Feeding Speed M/Min	2-18	2-18	2-18	2-18	2-18	2-18
In Feeding Chain Conveyor Meter	6	6	6	6	6	6
Outlet Conveyor Belt Meter	10	10	10	10	10	10
Solenoid Valve Hydraulic Oil Pump KW	3	3	3	3	3	3

Manufacture Direct Sell,
Delivery Time Withine 5 -10 days
Raw Material Including Wasted Wood Pallets,Plywood,Branches,RootsRoot,Branches,Wood ,Pallets Chipping
Hammer Rotor For Wooden Pallets with nails and Wasted Plywood with Stones
Knife Rotor For Solid Wood,Branches,Bamboos.
Screen For Different required wood chip
Magnetic Roller for Collect the nails by the end of the out feeding conveyor

Packaging & Shipping
Related Machines
Company Profile
Specialize in research & development, production, sales of sawmills and the relevant fittings SINCE 1988
We have serves 11,000 enterprises and our products have been exported to over 60 countries in the world.
Sawmill & Kilns & Pallet & Biomass & Forestry & Recycling
Sincerely welcome worldwide distributors to join us!

---
