1 Ton Mini Digger Ht10 Hydraulic Excavator

Product Description

Introduction of mini hydraulic excavator 1 Ton Mini Digger HT10 Hydraulic Excavator
The 0.9 ton small excavator has a unique advantage because of its low price, light weight, convenient maintenance and repair. Due to its compact size, flexibility, versatility and high efficiency, it is very popular among users. Wide applicability. The digging volume is small and flexible, which is very suitable for various pipeline excavation, foundation construction, public utilities and house maintenance operations in towns and cities. Small size and special design make it possible to work in an environment where large excavators cannot be constructed.
Main Features 1.Because 0.9 ton mini excavator volume is reduced compared with the traditional excavator, it is also reduced in terms of fuel consumption, so the improvement of energy saving is the optimization of environmental protection projects.
2.High usage rate, wide range of use environment, high efficiency, these are also the advantages of small excavators, in the construction team, efficiency and quality is undoubtedly in the first place.
3.Noise pollution is also a source of pollution.Small excavators also do a good job in reducing noise, which is conducive to promoting the safety and efficiency of workers.
We also have 0.8 ton , 1 ton,1.6 ton, 1.8 ton,2 ton and 2.2 ton mini Excavator for you too
choose!
Parameter of mini hydraulic excavator

Operating Weight	1000kg
Digging bucket capacity	0.025cbm/120kg
Bucket width	340mm
Engine	KOOP/B&S/KUBOTA
Bore stroke	Single cylinder, fan cool
Rated power	8.6 kw/3600r/min
Displacement	0.211 L
Bore stroke	70x55
Main pump	CBK-F6.8
Displacement	6.8ml/r
Swing motor	SJ-TECH (MP-1-160)
Traveling motor	KERSEN(OMS-2450)
Travel speed	1.5km/h
MAIN DEMENSIONS
Overall dimension( LxWxH)
Wheelbase	910 mm
Total length of track	1230mm
Platform ground clearance	380 mm
Platform back turning radius	784 mm
Chassis width	896 mm
Track width	130 mm
Chassis ground clearance	132 mm
Track height	320 mm
OPERATING RANGE
Max. Digging depth	1650 mm
Max. Vertical digging depth	1375 mm
Max. Digging height	2610 mm
Max. Dumping height	1850 mm
Max. Digging radius on ground	2850 mm
Min. Rotation radius	1330 mm
Max. Upgrade height of bulldozer blade	345 mm
Max. Digging depth of bulldozer blade	255 mm

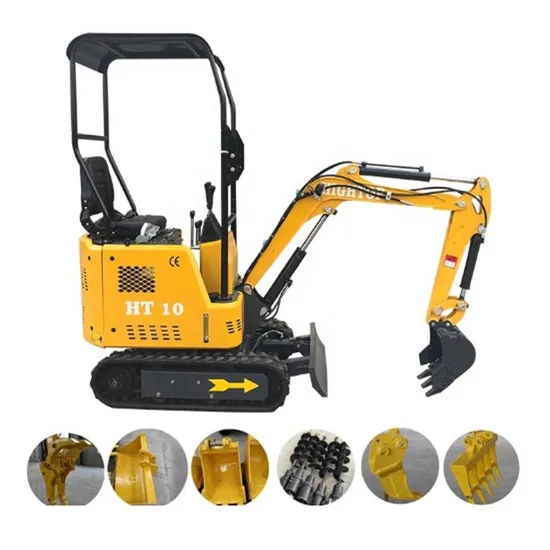

Images of mini hydraulic excavator
About UsChina Machinery Co. ,Ltd (CNMC), established in 1980, is an important and a large construction engineering equipment joint-stock enterprise Group of Shandong province, It has several wholly-owned subsidiaries, company headquarters is located at Jining Shandong province.
We have CE Certificate,SGS Product Certificate, ISO9000 Quality Control Certificate and BV Supplier Certificate, Our machine had win much good reputation through its quality and nice performance. Nowadays Our products have been exported to 127 countries and regions over the world.
