90-315mm HDPE Pipe Fusion Welding Machine/Plastic Pipe Welding Equipment/PP PE PVDF Pipe Jointing Machine Price/Thermofusion Butt Welder

Product Description

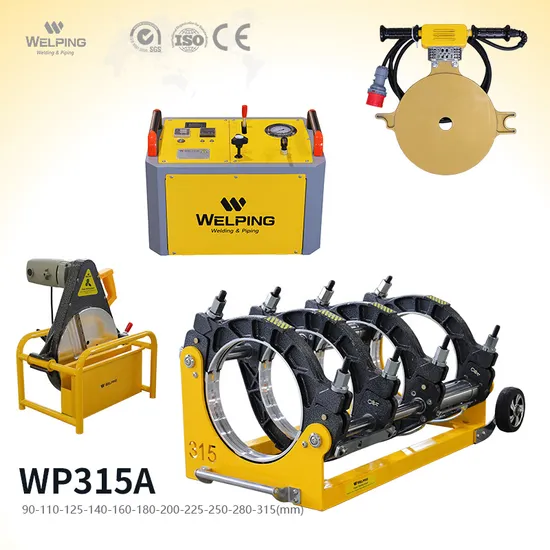

Welping 90-315mm HDPE Pipe Fusion Welding Machine/ Butt Fusion Welder equipment

Model		WP315A
Suitable materials		PE, PP, PVDF
Range		90-110-125-140-160-180-200-225-280-315mm
Power supply		220V
Frequency		50 Hz
Total power		5.85 KW
Heating plate		3.1 KW
Planing tool		2.0KW(23A)
Hydraulic station		0.75KW
Max.Pressure		16MPa
Hydraulic oil		L-HM46
Max.Temperature of heating plate		270ºC
Temp.Deviation in Surface		±5ºC
Total Weight		200kg
Net weight		174kg
Basic Frame & Planing tool & heating plate	plywood	940*670*540mm 0.34CBM
Hydraulic Unit	plywood	760*640*730mm 0.36CBM

Frame(Carriage)
◊Complete welded steel structure, strong,free of distortion◊Clamping part,inner fine-machined◊Standard equipped with carrying handlesfor easy transportation◊Qualified hydraulic cylinder with quickcouplings, for easy installation Heating plate
◊Cast aluminum body with built-in heating elements
◊Anti-stick PEFT coating
◊Qualified aviation plug and heavy duty cableensure operation safety Planing tool (trimmer)
◊Full gear transmission structure, for steady and long-life performance
◊Powerful copper-wiring motor
◊Durable, double edges HSS blade Hydraulic station
◊Integrated hydraulic and electrical control,
for easy operation access
◊All-in-one control panel:
hydraulic actuation, pressure setting, timing.electric info display, temperature setting
◊Enclosure design, shielding splash and dirtand wheels,for easy transportation
To help customers succeed in the field of plastic pipe jointing, WELPING had been focusing on thermoplastic welding equipment developing, manufacturing and selling for more than 15 years. We aim to bring industrial level design, performance and quality together, to help you build reputation. To suit different welding applications and market requirements, we are offering different level items represented by brand Deruibao,YOVIDA and WELPING . Brand Deruibao enjoys a high reputation in the market of China, benefiting from the steady product quality and performance. Thanks to our experienced engineers, WELPING can help you to quickly decide OEM and ODM requirements. At the same time, we are improving and updating products line to better suit field requirements. WELPING knows the importance of fast delivery for our customers. To better shorten production lead time, we consolidate critical production process into self-management,like die casting, metal fabrication and process, powder coating etc. Standard items andlight-OEM items, WELPING can finish in around 10-15 days.
General terms
1. Payment
We accept 30% TT deposit and 70% balance payment before delivery or 100% TT in advance.
2. Lead timeStandard items and light-OEM items, WELPING can finish in around 10-15 days.3. Warranty
18months from delivery date. We take full responsibility for parts with quality problems and provide them for free. 4. Customized design
Our experienced technical team can develop different solutions according to customers. MOQ is required for special requirements.5. About agency businessWe look forward to cooperate with influential company.

---
