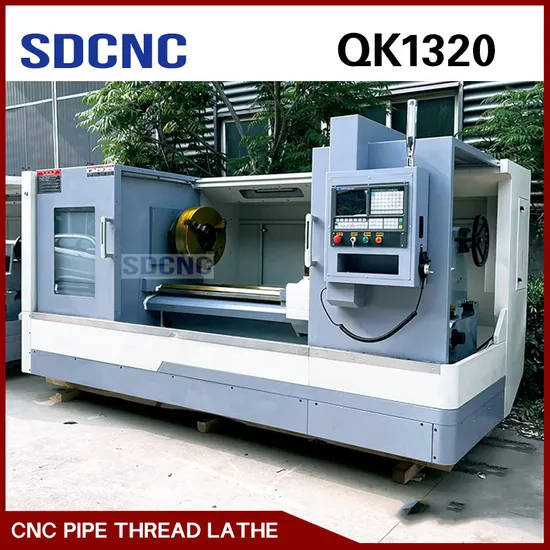

Qk1320 High Quality CNC Pipe Thread Cutting Machine CNC Oil Pipe Lathe

Product Description

Product Description
1. Fanuc or other brand CNC controller 2. Quick change tool post
3. Hydraulic turret or Power turret
4. Pneumatic chuck
5. Hydraulic tailstock
6. Pneumatic position limiter
7. Tool setting arm
8. Full-shield1.
Performance characteristics:
CNC pipe thread lathe spindle aperture is large, high passability, double chuck workpiece clamping stability cast iron casting overall bed rigidity, high precision, high hardness, long life of the guide rail surface after super audio quenching treatment, high hardness, high life of the drag plate using the guide rail surface plastic process, high precision.
CNC pipe thread lathe is a new CNC machine tool designed and manufactured for the machining of thread in petroleum, chemical industry, metallurgy industry, drill pipe and casing. The machine adopts double chuck clamping workpiece, three-speed frequency conversion, automatic control of CNC system, can process internal and external threads, and has the function of ordinary CNC lathes. Product Parameters

Item		Unit	QK1320
			Manual	HYD
Capacity	Swing over bed	mm	630/800
	Swing over cross slide	mm	340/520
	Distance between centers	mm	1000-6000
	Guideway width	mm	50-220
	Max. load capacity	mm	550
	Spindle bore	T	3
Spindle	Spindle bore taper	mm	200
	Spindle nose type	-	VF.4 steps	HYD 4 steps
	Spindle speed range	rpm	20-600
	Chuck	mm	Φ500 4-jaw manual
Turret	Turret/tool post	-	NC turret 4 position
	Tool shank size	mm	32×32
Feed	X axis travel	mm	320/420
	Z axis travel	mm	1000-6000
	X axis rapid traverse	mm/min	4000
	Z axis rapid traverse	mm/min	6000
Tailstock	Tailstock quill diameter	mm	Φ100
	Tailstock quill taper	-	MT5/MT6
	Tailstock quill travel	mm	250
Motor	Main spindle motor	kW	11
	Coolant pump motor	kW	0.25
Dimension	Width×Height	mm	1880×1850
	Length	mm	3300-8300
Weight	Net weight	T	4.5
