Qt6-15 Automatic Hydraulic Concrete Hollow Fly Ash Brick Making Machine

Product Description

Product Description
qt6-15 automatic hydraulic concrete hollow fly ash brick making machine in Nigeria

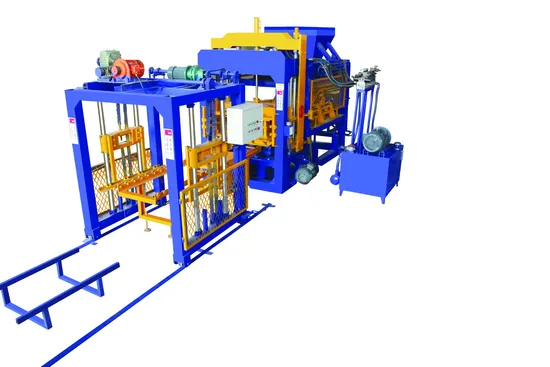

QT 6-15 is an automatic block making machine, it can make different hollow and solid bricks by changing mold, it also can make
paver blocks by adding pigment feeder. The production line includes QT6-15 host machine with controller and hydraulic station,
stack machine, JS500 mixer and 8 meters belt conveyor, PLD1200 batching machine and pallet feeder machine

Production capacity :

Size	pcs/mold	pcs/hour	pcs/8hour
400*200*200mm	6	1440	11520
400*150*200mm	8	1900	15360
400*100*200mm	12	2880	23000

Advantages of our machine :
1. Machine with PLC controller works automatically, no need people to operate,
which will save labor cost.
2. The weight of machine is 5.8T, which has stronger structure than other suppliers.
3. Molds are heat treated, which can prolong the service time.
4. Two sets of 7.5KW vibration motors together with vibration box shapes bricks
faster and stronger!
5. Hydraulic design has less problem compared with mechanical design.
6. Fast belt conveyor design transfers the material from hopper to material feeder
cart, no waste of material.

Product Parameters
QT6-15 block making machine
1. Dimension: 4400*2300*2800mm
2. Weight: 5.8T
3. Pallet size: 900*700*22mm
4. Shaping method: vibration and hydraulic
5. Shaping cycle: 15s
6. Power: 31.25KW

Stack machine
1. Dimension: 1.5*1.5*1.8m
2. Weight: 1.2t
3. Power: 2.25kw

JS500 mixer
1. Dimension: 2.3*1.8*2.6m
2. Weight: 3t
3. Lift motor:5.5KW
4. Mix motor: 18.5KW
5. Water pump: 1.1KW
PLD1200 batching machine
1. Dimension: 9.6*1.7*2.3m
2. Weight: 2tons
3. Power: 12KW
4. Capacity of scale hopper: 1.2m3
Block sample
Machine can make different bricks by changing mold, mold can be customized.


Feedback from customer

Company Profile
Shandong Yinan Tengfei Machinery Co.,Ltd is located in Linyi city, Shandong province of China. We are committed to the research and development, manufacture and sales of concrete block making machines since 1999.
With advanced technology, strong quality and perfect after sales service, we have gained a lot of customers from China and abroad. We have shipped our block machines to many countries like the Philippines, Vietnam, Pakistan, India, Bangladesh, Ghana, South Africa, Ethiopia, Senegal, Mozambique, Nigeria, Chile, Jamaica, Columbia, Argentina, USA, Mexico etc.
Tengfei Machinery will insist on creating a brighter future with Intelligence and innovation. We look forward to working with you in the very near future.


Any interest, please feel free to send inquiry and leave me your contact number, i will contact you for further communication!

---
