Floor Price 1 Spindle 3-Axis Flat Die Deep Hole Drilling Nc System Machine for Wood Pellet Mill Table Size 850*1050mm

Product Description

Key Specifications/ Special Features:

The same quality, lowest price; same price, best quality.

This machine is suitable for feeding mold drilling, metal and valve body heat pipe tube drilling
Equipment features:

High-automation, special design for the flat die process Low consumption of electricity High quality, economical use Small machine size but long travel range, high rigidity Drilling depth up to 150mm All distributed holes are no needed to program, easy to operate User-friendly interface on CNC control system is easy to operate User only needs to key in processing parameter Drilling hole automatically, economical for mass production All holes on flat die are equilateral triangular arrangement to ensure the same thickness Automatically memory when power off shortly, no need to re-processing that reduce the downtime Overload protection (optional) and machine may downtime in short time if the machine load is too large caused by other reason So that it will avoid any unnecessary lose

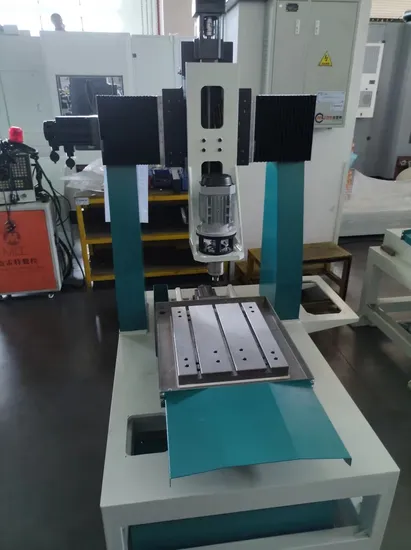

NC FLAT DIE TWIST DRILLING MACHINE main configuration
Item	Processing Detail	MLT-P10800 Figure
1	X/Y axis Stroke	1000*800
2	Z axis Travel Range	400mm
3	Scope of Drilling	1-16mm
4	Table size	850*1050mm
5	The Clamping way	T-slot
6	Positioning accuracy	0.02mm
7	Spindle speed	0~3000rpm
8	Spindle power	3kW
9	Language	English/Chinese
10	NC control system	MLT 208i
11	Machine net weight	~1500kg
12	Machine size	2100*1700*2400mm

Service item:

Machine warranty period: 12 months once the customer receives the machine After 12 months, we may answer the customer's question online or by E-mail within 24 hours Mltor will prepare one more set of quick-wear components with the machine for the customer Mltor will not provide or change any part or component for free if the customer damages them abnormally Customer needs to purchase them separately Mltor will afford the customer's technician local transportation, accommodation, and catering cost when the customer's technician comes to Mltor factory to have trained or inspected the machine before the machine delivery Customers will afford their technician traveling cost In warranty period, if the customer requests Mltor engineer to support in foreign country, Mltor will support to check equipment and train the customer technician for free but the customer needs to afford Mltor's engineer travelling expenses, local transportation, accommodation, and catering cost

---
