5gallon Bottle Blower Machine Barrel Making

Product Description

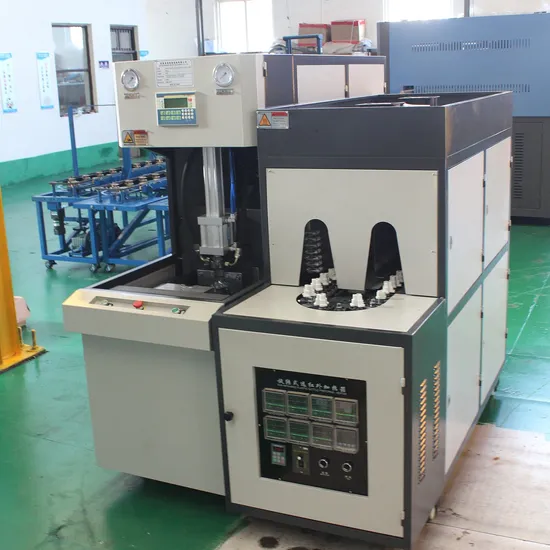

description of 5gallon PETsemi-auto blowing machine for mineral drinking water
PET blow moulding machine for large PET bottles is specially designed to produce 5-gallon PET container and 25L wide mouth jar. Its max output is up to 120 BPH for 5-gallon bottle and even could reach 120 bottles per hour for the one way used thin wall 5 gallon bottles.
PET blow moulding machine consists of main unit and rotary infrared heater. The ordinary quartz lamp cannot heat preform ideally because the preform wall is excessively thick. The infrared heater with high penetrative force can heat the inside and outside of preform simultaneously and keep preform in even heating, therefore high shaping quality.
Main parameters

Item	Parameters	Remark
Max size	20L	1cavity
Theory capacity	80PCS/H	18.9L
Heating power	34kw	380V 50HZ
Blowing pressure	<4.0Mpa	Action pressure ≤0.8 Mpa
Shift Stroke	340mm	max
Temperature segments	14sets	Intelligent ZKD digital voltage regulator
Main machine size	2200×700×2250
weight	1500kg
Thickness of moulds	300-400 mm
Heating type	Far-infrared	Rotate heating system

---
