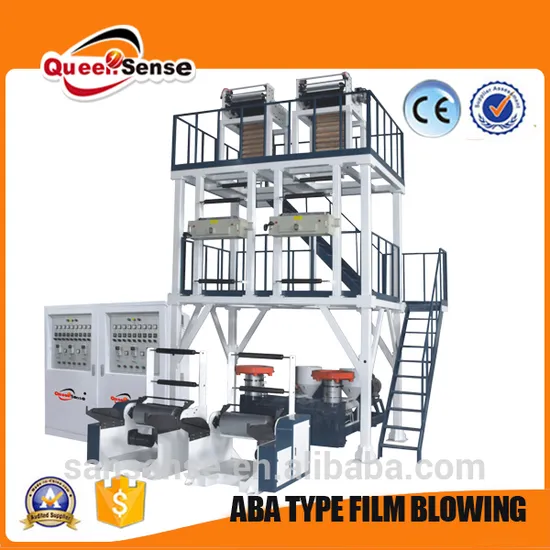

ABA Co-Extrusion Film Making Machine T Shirt Bag Film Extruder

Product Description

polyethylene film ABA Twin Die Film Blowing Machine ruian best t-shirt bagpe film blowing machine blown film extrusion machine
aba film blowing machine extruder machine plastic
agricultural carieer bag t shirt bag film blowing machine
Function:
This machine set is used for blowing Low-density polyethylene (LDPE) and high- density polyethyene (HDPE) plastic film to make various vest bags and flat-rim bags which have been widely used for packing in the food industry, garment industry and textile industry, etc.

Characteristics :
Both the cylinder and the screw of the extruder are made of high quality alloy steel through nitration and precision finishing with the best hardness and corrosion resistance.,Scientifically designed, this machine set has two heads for one extruder with such advantages as increasing production capacity, saving energy, labour and workshop area, etc.
Main Technical Varia:

Machine details: Extrusion Die Head
Model : QS-DH 400*2 QS-DH 500*2
Die Head Diameter:60mm*2 80mm*2
Heating Ring Material:Stainless Steel
Screen Changer :Standard Manual
Air Ring:620*2 Bubble Blower:3KW*2
Winding Unit
Model :QS-DH 400*2 QS-DH 500*2
Type of Winder:Separate single-winding
Diameter and Length of Winding rubber roller: 270*600mm 270*700mm
Diameter and Length of Winding shaft:3 inch
Winding Motor:1.5kw Winding Speed:10-100m/min
Extrusion Unit
Model : QS-DH 400*2 QS-DH 500*2
Screw Diameter(mm):50×2 55×2 Screw L/D Ratio:30:1
Screw&Barrel Material:Sacm-645/38 CRMOALA
Heating Ring Material: Stainless Steel Barrel Cooling Fan:250w*4
Main Motor(kw):22kw*2 30kw*2 Inverter:Paineer
Average Power-consume:40kw/h 60kw/h

Advantages:
1. We're factory suppliers of film blowing machine, printing machine, bag making machine and recycling machine, and laminating machine.
2. Not only a good quality and competitive price are promised, each of our customer can also enjoy oversea service and one-year quality guranantee under normal operation!!!
3. Machine videos are clear and waiting for you to check. If you need a factory tour, wanna get a closer look to finished products, go and contct us right now!!! We sincerely welcome you to visit our factory.

Welcome to contact us for further details and price!!
QUEENSENSE MACHINE CO.,LTD.
Tel : 0086-13567760591(Cindy song)
FAX: 0086-577-65129055
WEB: sanxinmachine.en.made-in-china.com

---
