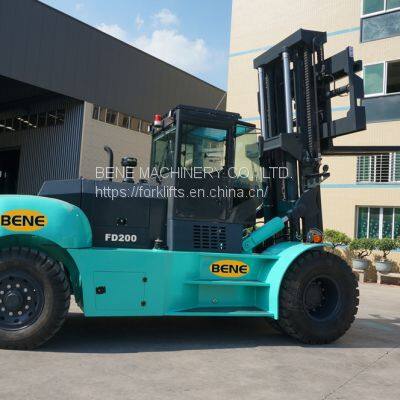

BENE 20 ton heavy duty forklift FD200 vs SANY 20 ton forklift HELI HANGCHA CPCD200 diesel forklift

Product Details

Product Description

Product Description
BENE 20 ton heavy duty forklift FD200 vs SANY 20 ton forklift HELI HANGCHA CPCD200 diesel forklift
Engine: Cummins Engine, low oil consumption, high quality turbocharged engine, good power performance, big torque reserves, has strong power, energy conservation and environmental protection
Steering axle: adopt transverse oil cylinder type steering bridge, full-hydraulic steering, flexible and light, reliable
Transmission & torque convert: imported technology, reliable performance, convenient maintenance, smooth transmission, and convenient operation
Control system: pilot valve control device to make the work efficiency and reduce drivers’ labor intensity
Hydraulic system: double pump confluence, small system flow, low power consumption, reliable performance, excellent operating performance
Pipeline: high pressure oil line use the famous brand, impact resistance, wear resistance and long service life
Tyre: sino-us joint brand, resistant to wear and sting, high strength tyres, bear heavy loaded - safe and reliable
Fork: use Cascade Fork, with hydraulic fork positioner, easy operation and reduce drivers’ labor intensity
Mast: box-type internal-external mast, special all-round roller bearings, increase lifting performance
Speciflcation

General	Manufa cture					BENE
	Manufacture					FD200
	Power type					Diesel
	Rated loading capacity				Kg	20000
	Load center				mm	1200
Dimensions	Lift height				mm	3000
	Free lift height				mm	195
	Fork size				mm	2000×200×120
	Fork distance			Min./Max.	mm	680/1700
	Mast tilt anglc			Front/After	deg	8/12
	Front overhang				mm	1000
	Overall dimensions	Overall length			mm	7120
		Overallwidth			mm	2450
		Mast lowered height			mm	3200
		Mast extended height			mm	4825
		Overhead guard height			mm	3370
	Turning radius				mm	5800
	Min.right angle aisle width				mm	3712
Performance	No load/Full load	Traveling Speed			km/h	40/30
		Lifting spead			mm/sec	350/300
	Max.grade abnlity				%	25
	Max. Pull force(full load)				KN	125
	Self weight				kg	30000
Chassis	Tread	Front				12.00-24×4PR
		Rear				12.00-24×2PR
	Treadwidth	Front			mm	1818
		Rear			mm	1850
	Wheelbase				mm	3500
	Min.Ground clearance (No load/Full load )		Mast		mm	570/560
			Frame		mm	570/560
Drive unit&control	Battery				V/AH	24/100×2
	Engine	Manufacture				WD10G220E11
		Manufacture				WEICHAI
		Rated power			Kw/rpm	162/2300
		Rated torque			N.m/rpm	1460/2400
		NO.of cylinder				6
		Bore×Stroke			mm	126×130
		Displace ment			L	9.726
		Fule tank capacity			L	300
	Transmissions	Type			L	Hydraulic
		Shift Front/rear				2/1

---
