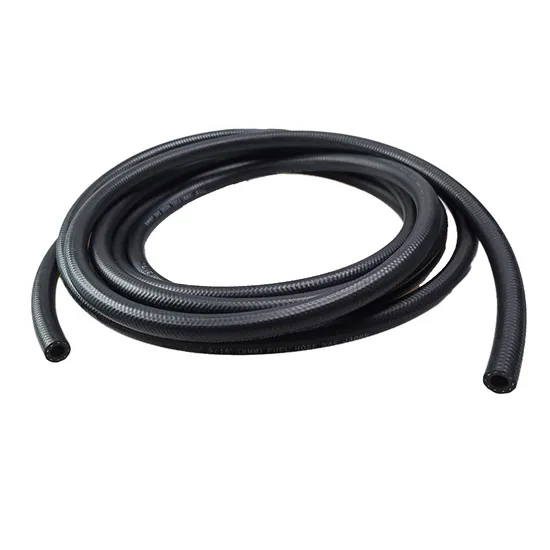

Saej30r9 FKM Rubber Fuel Hose EPA&Carb High Pressure Oil Fuel Hose

Product Description

Product Description :	FKM Rubber Fuel Hose EPA&CARB certificated High Pressure Fuel Line SAEJ30R9
Product Application:	To be used in automotive fuel injection system to transport diesel ,lubricating oil,etc.
Company Qualification:	LITO have certified by IATF 16949:2016
Material:	FKM/ECO/AR/ECO
Structure:	4 layers
Standard:	SAEJ30R9 , DIN73379 B1
Working Temperature:	-40°C~+135°C
Product Certification:	EPA&CARB
LITO Main Products:	Automotive Radiator/Coolant hose,Fuel/Oil hose, Brake hose,AC hose,Air intake hose,Silicone hose. Rubber seals,Rubber molded parts(Rubber gasket,Rubber washer,Rubber damper,Rubber bellows),etc.
Product Shape:	Developing according to customer's drawing or sample
Product Standards:	We can meet the product standards like SAEJ20, DIN_73411-1, SAEJ30, DIN73379 B1,GM6260M, GMW15605, GMW15349, TL-52361ES-X25020GM6278MGM6140MISO4081TL-52424ES-X60617ES-X60618TL-52026TL-52055TL-52255 MS.50062 MS.50064MS.50110,etc
Development Time:	15-25days

SAE J30R9 Fuel Hose regular sizes sheet

Sr#	I.D					O.D			Working Pressure			Burst Pressure
	inch	mm	tolerance	mm	tolerance	bar	psi	bar	psi
1	1/8	3.2	±0.3	9	±0.3	20	300	80	1200
2	5/32	4	±0.3	10	±0.3	20	300	80	1200
3	3/16	4.8	±0.3	11	±0.3	20	300	80	1200
4	1/4	6.3	±0.3	12.7	±0.4	20	300	80	1200
5	5/16	7.9	±0.4	14	±0.5	20	300	80	1200
6	3/8	9.5	±0.4	16	±0.5	20	300	80	1200
7	15/32	12	±0.4	19	±0.5	20	300	80	1200
8	1/2	12.7	±0.5	20	±0.6	20	300	80	1200
9	5/8	16	±0.5	24	±0.6	10	150	40	600
10	3/4	19	±0.6	28.8	±0.8	10	150	40	600
11	1	25.4	±0.8	35	±1.0	10	150	40	600

---
