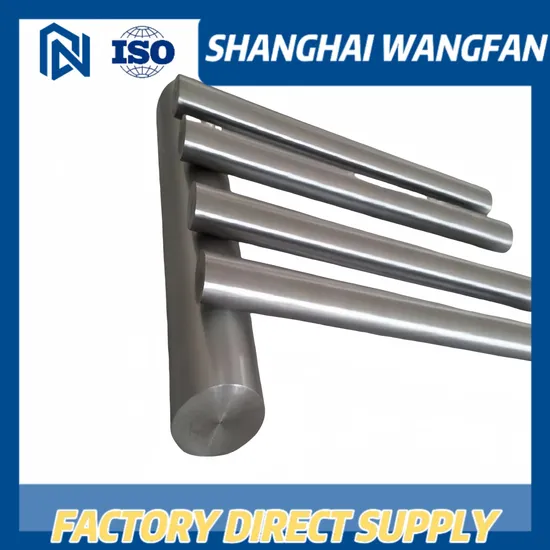

Versatile Incoloy 800/825/901/925/926 Nickel Alloy Bars for Various Applications

Product Description

Product DescriptionIncoloy Alloy
Incoloy alloy is a general term for a series of superalloys with high iron content. Depending on the ratio of nickel, chromium, and iron, Incoloy alloys can be nickel-iron-chromium alloys, iron-nickel-chromium alloys or iron-chromium-nickel alloys.It is widely used in aerospace, chemical,petroleum and other fields.Detailed PhotosProduct Parameters
Incoloy series: Incoloy 800800h 800ht 825925
· Chemecal composition

Alloy	%			Ni	Cr		Fe	C		Mn	Si	Cu	W	Al	Ti
800	Min			30	19		39.5							0.15	0.15
	Max			35	23			0.1		1.5	1.0	0.75	0.015	0.6	0.6
H008	Min			30	19		39.5	0.05						0.15	0.15
	Max			35	23			0.1		1.5	1.0	0.75	0.015	0.6	0.6
800HT	Min			30	19		39.5	0.06						0.15	0.15
	Max			35	23			0.1		1.5	1.0	0.75	0.015	0.6	0.6
				Al+Ti:0.85-1.20

· Physical properties

Density			8.0 g/cm²
Melting point			1350-1400ºC

· Minimum mechanical proporties in the room temperature

Alloy		Tensile strength Rm N/mm²							Yield strength R P 0.2N/mm²					Elongation A 5 %
800		500							210					35
800H/800HT		450							180					35

· COMPARE OF ALLOY NAME

Name	China	Anerica	Gernany	Britain	France
Incoloy 800	NS111	UNS NO8800	W. Nr. 1.4876, X1ONiCrAITi3220	NA15	Z8NC32. 21
ncoloy 800H	NS112	UNS NO8810	W. Nr. 1.4958, X5NiCrAITi31-20	NA 15(H)
Incoloy 800HT		UNS N08811	W. Nr. 1. 4959*, X8NiCrAITi32-21
Incoloy 825	NS142	UNS N08825	W. Nr. 2.4858, NiCr21Mo	NA16	NC21FeDu
Incoloy 926		UNS N08926	W. Nr. 1. 4529, X1NiCrMoCu	X1NiCrMoCu	X1NiCrMoCu
Alloy20	NS143	UNS N08020	W.Nr . 2. 4660, NiCr20CuMo
Alloy31	NS144	UNS N08031	W.Nr.1.4562,X1N liCrMoCu32-28-7
Inconel 600	NS312	UNS N06600	N'n. 2.4816, NiCr15Fe	NA14	NC15FE
Inconel 601	NS313	UNS N06601	W.Nr.2.4851,NiCr23Fe		NC23FeA
Inconel 625	NS336	UNS N06625	W.Nr.2.4856,NiCr22Mo9Nb	NA21	NC 22 DNO
Inconel 690	NS315	UNS N06690
Inconel 718	GH4169	UNS N07718	WNr.2.4668,NiCr19Fe19Nb5Mo3	NA 51	NC 19FeNb
Inconel X-750	GH4145	UNS NO7750	W.Nr.2.4669,NiCr15Fe7TiAl		NC15INDA
Monel 400	NS321	UNS N04400	w.Nr.2.4360,NiCu30Fe	NA 12	Nu 30
Monle K-500	NS322	UNS NO5500
Hastelloy B		UNS N10001
Hastelloy B-2		UNS N10665	W.Nr.2.4617,NiMo28		NiMo28
Hastelloy B-3	NS323	UNS N10675	2. 4600
Hastelloy C	NS333
Hastelloy C-22		UNS N06022	W.Nr.2.4602
Hastelloy C-276		UNS N10276	W.Nr.2.4819,NiMo16Cr15w	NC 17D
254SM0	NS321	UNS S31254	W.M.1.4547
9041	NS322	UNS N08904	W.N.1.4539
GH11 40	GH1140
GH21 32	GH2132	UNS S66286	W.Nr.1.4980
GH3030	GH3030
GH3044	GH3044
GH3128	GH3128
Invar 36		UNS K93600	W.Nr.1.3912,Ni36	X1NiCrMoCu	Fe-Ni36
