CNC Steel Plate Working Machine FINCM Steel Structure Fabrication CNC Plate Hydraulic Punching Marking Machine

Product Description

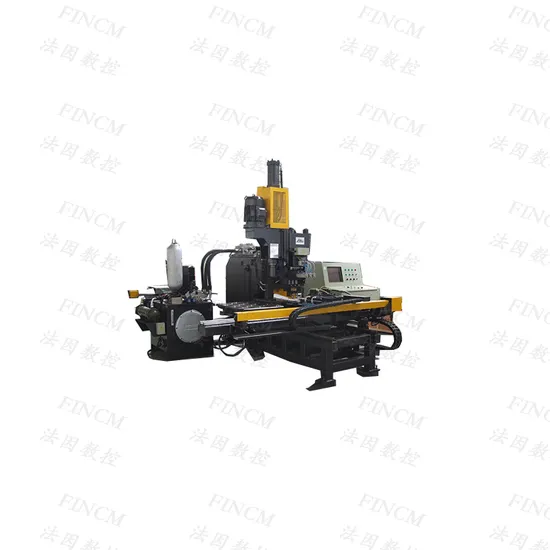

PPHD123 FINCM Steel Structure Fabrication CNC Plate Hydraulic Punching Marking Machine 1500mm*775mm*25mm
Product Description
CNC hydraulic flat punching and drilling compound machine is mainly used for punching small and medium sized plates in steel structure, electric power and automobile industries.

Main Technical Specifications:

Parameter name	Unit	Value
Thickness Workpiece Size	mm	5~25 mm
Max. size of workpiece	mm	1500×800mm
Punch force	KN	1200KN
Max size diameter	mm	¢25.5mm
Punching diameter &thickness	mm	σb≤580MPa:¢26×25 σb≤610MPa:¢26×20
Minimum hole margin	mm	25mm
Spindle Drilling taper		BT50
Drilling diameter	mm	φ13-φ40(Carbide drill)
Max. speed of spindle:	r/min	3000r/min
Clamp cylinder Number	piece	2
Quantity of CNC axes	piece	3
Stroke of X ,Y,Z axis-speed	m/min	0--18m/min
Motor power of oil pump	KW	22 KW
Motor power of spindle	KW	15KW
AC servo motor power of X axis	KW	2KW
AC servo motor power of Y axis	KW	2KW
Work-pressure of high-lift pump	MPa	24MPa
Work-pressure of low-lift pump	MPa	6MPa
Method of cooling		Water
Method of Tools cooling		trace Oil fog cooling system
Total power	KW	26
Overall dimensions (L×W×H)	mm	About 3600×3200×2300mm
Net weight of the machine	Kg	About 8200Kg

Working environment:
Working temperature: 0ºC ~ 40ºC
Power: Three phase four wire system
AC Voltage: 380V
Fluctuation of voltage: ±10%
Frequency: 50 Hz Relateed Products
