OEM China Manufacturing Metal Steel Profile Making C U Channel CD Ud Cw Uw Omega Roll Forming Machine for Construction

Product Description

Product Description

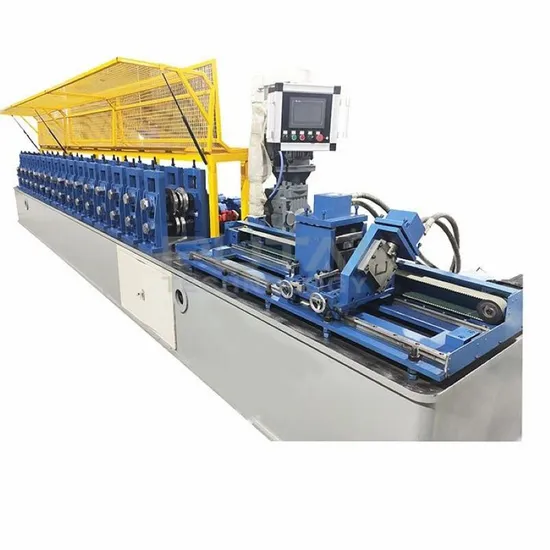

OEM China Manufacture Metal /Steel Framing U Channel CD Ud Cw Uw Drywall Omega Roll Forming Machine for Construction

High-speed C stud and track roll forming machines are used to produce metal framing components for the drywall industry. These machines are designed to form metal studs and tracks which are used in the construction of drywall walls and ceilings. The machines use a combination of rollers, punches, and dies to form the metal into the desired shape and size. The machines can be configured to produce a variety of shapes and sizes, including straight, curved, and tapered studs and tracks. The machines are capable of forming multiple pieces at once and can be set up to run at high speeds for maximum productivity.

Machine name	steel profile roll forming machine
Main motor power	7.5kw
Hydraulic motor power	5.5kw
Voltage	380v 50hz 3phrase
Control system	PLC
Feeding thickness	0.3-0.6mm
Speed	95m/min
Roller station	16stations
Shaft diameter	75mm
Shaft material	45# solid shaft
Roller material	45# steel chrome treatment
Cutter material	Cr12 Mov
Structure	Pillar
Transmission	Gearbox

Our company adopts a universal shaft gearbox for transmission of high-speed forming machine, which makes the operation of the machine more stable,with low transmission failure and long service life. High-speed production can be performed as usual. Generally,high-speed forming machines need to be equipped with high-speed automatic strapping and baling machines developed by our company.Because high-speed machines are running into production, it is very inefficient to rely on manual packaging.In order to achieve high-efficiency production, it is recommended to use a high-speed automatic trapping baler, which saves time and improves efficiency for the factory.
Customer

Certifications

Company Profile
Our company is committed to researching, developing, and producing light steel profile cold-forming Machines!
The company has a number of technology research and development patents. The earliest origin of the factory was the establishment
of a professional mold precision machining center in 2003. In 2015, I researched and developed the production of automatic steel profile of drywall
forming machines for ceiling systems, and accounted for a large proportion of sales at home and abroad.
In 2019, our company successfully developed a fully automatic light steel profile baler combined with a forming machine to realize a fully automated production line from raw materials to final product baling. Save labor costs for customers and improve production efficiency.
The equipment has a 90% market share in China. In 2020, through continuous upgrading and improvement, our company began to show our fully automatic packaging system equipment to the world. Sold to America, Europe, Southeast Asia, the Middle East, and other large and powerful building materials companies.
Our company's equipment and after-sales service are appreciated and recognized by new and old customers, and we have
established long-term business partnerships. Welcome purchasing teams from all over the world to come to our company for consultation and negotiation.
We mainly produce equipment with high quality and high stability, which not only brings long-term production force and efficiency to customers, but also is our company's long-term and sincere goal of friendly cooperation to achieve a win-win situation for both parties!
The International Trade Department of our company is located in Tianjin, which is a port city, which is more convenient for export formalities. Our factory is located in Hebei Province, and it only takes 30 minutes to reach the factory by high-speed rail from Beijing.
The factory is located at a highway junction near a high-speed rail station. The location of our factory is very convenient, to make your business travel easier and more efficient.
Packaging & Shipping

After Sales Service

FAQ
Q:What is metal track used for in metal stud framing?


A:There are two basic steel framing components: studs and tracks. The track functions as the top and bottom plates. When you're metal stud framing, lay out your walls and openings just like you would with wood, but when you install the bottom plate, don't run the track across the door openings.
Q: Can you make the machine according to my design or prototype?
A: Yes. We have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us
Q: How can we be assured that you will deliver us a quality machine with spare parts?
A:1. Customers to send the technical people to our factory to check the quality.
2. We can send the technicians to the buyer`s factory for the installation of the machine.
3. Good aftersales service, it's free of charge during the warranty period.
