| US$25,000.00 | 1 set (MOQ) |
| NO. | ITEMS | FUNCTION | QTY(SET) |
| 1 | QTY4-15 block Making Machine | Making block automatically | 1 |
| 2 | Automatic block conveyor | Deliver the finished wet blocks | |
| 3 | Automatic pallet feeder | Feed pallets automatically | |
| 4 | Hydraulic unit | Offer hydraulic press for the whole line | 1 |
| 5 | PLC Control system | Control the whole production line. | 1 |
| 6 | Block Mould | Molding blocks | 1 |
| 7 | Belt Conveyor | Deliver the raw material to Block machine | 1 |
| 8 | JS500 Mixer | Mixing raw materials | 1 |
| 9 | Spare parts and tools | 1 |
| Production Capacity | |||||
| Items | Size(mm) | pcs/mould | Cycle Time | Production capacity | |
| (L*W*H) | pcs/hour | pcs/8 hours | |||
| solid brick | 240x115x53 | 30 | 15~20S | 7200 | 57600 |
| hollow block | 6" 400x150x200 | 6 | 15~20S | 1050 | 8400 |
| hollow block | 8" 400x200x200 | 4 | 15~20S | 840 | 6720 |
| paving brick | 200x100x60 | 16 | 15~20S | 2880 | 23040 |
| paving brick | 225*112.5*60 | 14 | 15~20S | 2520 | 20160 |
| QTY4-15 Technical Specifications | |||||
| Brand Name | ZCJK | ||||

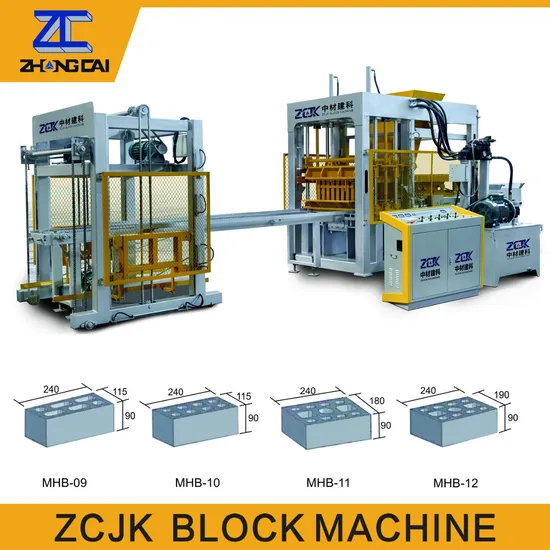

| Model | QTY4-15 Hydraulic Automatic Block Making Machine | ||||
| Main Power | 28kw | ||||
| Weight | Host machine 4T, whole set 8-10T | ||||
| Host machine Dimensions | 3000*1700*2400mm | ||||
| Vibrating Force | 68KN | ||||
| Pallet Size | 1020*550*20mm | ||||
| Container Required | 1*40HQ Container | ||||
