Industrial Housing Machine Microporous Membrane Cartridge Filter for Water Treatment Equipment

Product Description

Industrial Housing Machine Microporous Membrane Cartridge Filter For Water Treatment Equipment

Model Table	Filter element No	Filter element length	Material of shell	Filter element interface	Connect way	Materail of Seal
F	1 element	5"	304	226	Tri-clamp	Silicone rubber
F		10"	316L	Flat pressing	Flange	Fluorine rubber
F		20"			Threaded	PTEE
F		30"				EPDM

product description
It has the advantages of high filtration accuracy, fast filtration speed, less adsorption, no media shedding, no leakage, acid and alkali corrosion resistance, convenient operation, etc. It can remove bacteria and particles in the injection water and liquid medicine, and it can be backwashed during cleaning. Different users can form two, three, and four-stage filters to achieve the best filtration effect. They are widely used in the sterilization and clarification of medicine, large infusion, pure water, and biological engineering.
Membrane technology is a high and new technology that integrates high separation, concentration, purification and purification, which has been rapidly developed in recent years. At present, new domestic membrane equipment has been continuously developed, researched and applied, and many aspects are close to the advanced foreign similar products. Level. As we all know, the current filter operation has entered the era of membrane filtration. As people's understanding of filtration membranes continues to deepen, membrane filtration will be widely used in most people's filtration operations. Because it can be used as a fine filtration equipment alone, but also as other purification devices (such as ion resin exchange, electrodialysis, reverse osmosis, ultrafiltration, etc.) to pretreatment equipment.
Structure description
1. The filter element is a foldable cylindrical microporous membrane filter element, the diameter of the filter element shell is 2.7 feet (ie 69mm), and the length of the filter element is 10, 20, 30 and 40 feet (ie: 250, 500, 750 and 1000mm). The sealing method with the filter housing is divided into two types: plug-in type (222 seats and 226 seats) and flat nozzle type. The breakdown is as follows
a. The plug-in filter element includes 222 seats and 226 seats, which are the international standard numbers for the interface between the filter element and the filter element. The 222 seat is an "O"-shaped socket, and the 226 seat is an "O"-shaped interface. There are a pair of lugs on the interface. When installing, click into the groove on the socket plate of the filter housing to fix the upper end of the filter.
b. The upper and lower ends of the flat-mouth filter element are flat, and the connection between the filter element and the socket plate of the filter housing is fixed by a flat sealing ring.
According to the needs of users, it can also design and manufacture filter elements with special specifications and purposes (such as filter elements for household water purifiers, etc.) for users. Long-term supply of "O"-shaped seals and flat seals.
2. Filter

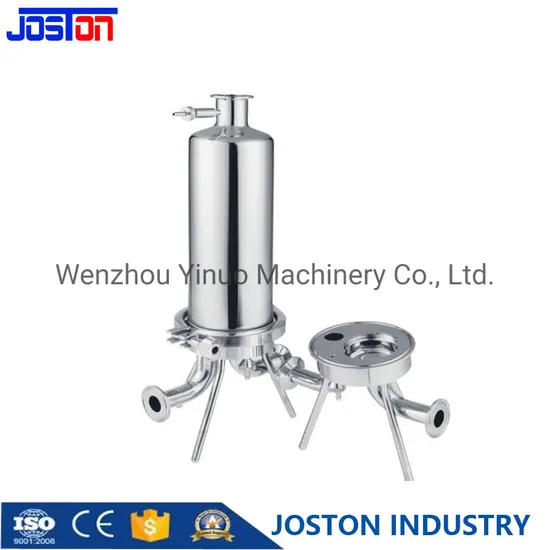

The microporous membrane cartridge filter consists of a microporous membrane filter element, a stainless steel shell, and necessary stainless steel pipes and valves.
There is a socket plate for inserting the filter element in the lower part of the filter, and there is a hole on the plate for inserting the filter element. According to the different user processing flow, the filter has single core 3 cores, 5 cores, up to dozens of filter cores. At the same time, in order to facilitate the loading and unloading of the filter element, the shell is divided into two parts, the upper and lower parts, which are connected by quick bolt
Flow capacity : 0.5t/h-30t/h
Flterhouselength:5",10",15",20",30" etc
Filr caridge quantiy in iler : 1core ,3cre ,5cre ,7 cre,9core 11 etc -Filter house material : 304/316L
Filter cartridge material: PTFE , PP, PVDF, N66, PES
Filter precision 0.22um, 0.4um, 1um, 3um, 5um, 10um, 20um, 50um etc -Cartridge connection model : 222, 226 etc
Flow capacity : 0.5t/h-30t/h
Flterhouselength:5",10",15",20",30" etc
Filr caridge quantiy in iler : 1core ,3cre ,5cre ,7 cre,9core 11 etc -Filter house material : 304/316L
Filter cartridge material: PTFE , PP, PVDF, N66, PES
Filter precision 0.22um, 0.4um, 1um, 3um, 5um, 10um, 20um, 50um etc -Cartridge connection model : 222, 226 etc

---
