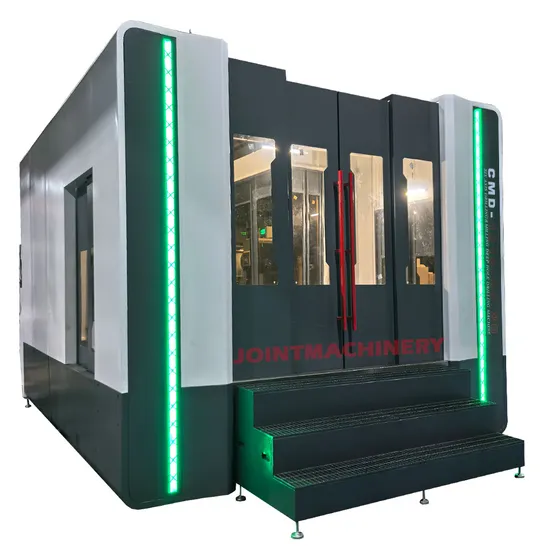

6-Axis Metal Drilling Machine CNC Deep Hole Drilling and Milling Machine Cmd-1008-35.20

Product Description

Drilling is a fundamental and essential process in machining operations, with a notably wide range of applications across various fields. Traditional drilling equipment such as bench drills, milling machines, and radial drills often confines laborers to repetitive tasks with limited quality control. Issues like safety concerns, efficiency, and processing limitations have long challenged manufacturers and operators. However, with the advent of the CNC era, the introduction of the CNC deep hole drill has revolutionized the scene. This innovative technology not only liberates the workforce from monotonous tasks but also overcomes the bottleneck of deep drilling processes. It enables achieving the processing quality of conventional drilling machines in a single pass while drilling, enlarging, and expanding operations. Additionally, it seamlessly incorporates automatic chip removal, CNC positioning, and automatic processing, setting a new standard for machining excellence.

3 Axis CNC Deep Hole Drilling Machine	4 Axis Vertical CNC Deep Hole Drilling Machine	Multi-Spindle CNC Deep Hole Drilling Machine	6 Axis CNC Deep Hole Drilling Machine

The CMD Series Six-Axis Drilling and Milling Composite Machine Tool stands as a pinnacle of multifunctionality, adept at both deep hole drilling and precision milling. Its hallmark is the incorporation of a rotating workbench and a dynamic A-axis, engineered to execute intricate machining of complex components with inclined and double-inclined holes, as well as surfaces with precision. This sophisticated tool finds its applications across diverse fields, offering unparalleled versatility and efficiency.
Industries such as automotive mold manufacturing, engine cylinder block production, shipbuilding, aerospace, petroleum hydraulics, new energy power, nuclear power, and chemical engineering benefit immensely from our tools. The CNC machine's capability shines in handling challenging tasks like the inclined top rod on molds, double-inclined water paths of hot forming molds, hot runner plates, engine cylinder bodies, rolling rollers, rotary tables, and flywheels, to name a few. This versatility makes it an indispensable asset across sectors.
1.Complete control and servo systems from FANUC, Japan, ensuring unparalleled precision and reliability.
2. Dual closed-loop design for A and B axes, meticulously engineered to meet the demands of exact composite angle processing.
3. Featuring integrated deep hole drilling and milling capabilities with an optional single pipe drilling function for enhanced versatility.
4. A-axis with a significantly large swing angle, allowing a broader processing range and flexibility.
5. Robust fan-shaped disk hard rail design assures stable and dependable swing of the A-axis, enhancing operational integrity.
6. Anti-deviation load rotating workbench, crafted for precision and stability in demanding operations.
7. Heavy pre-pressed roller precision wire rail paired with a large diameter grinding-grade screw rod for top-tier performance.
8. Dual-cycle precision filtration system combined with a high-pressure cooling chip removal system for optimal operational efficiency.
9. The sleek, new fully enclosed cover is both aesthetically pleasing and technologically advanced, enhancing machine appeal.
10. Optimized body design featuring strong rigidity, high stability, and exceptional seismic resistance, ensuring longevity and superior performance.
6-Axis Metal Drilling Machine CNC Deep Hole Drilling and Milling Machine CMD-1008-35.20

Model	Unit	CMD-1008-35.20
Machining Capacity
Drilling diameter of gun drill	mm	3-40
Drilling diameter of single pipe drill	mm	/
Max drilling depth of gun drill (W)	mm	800
Machining Stroke
Left and right of workbench (X)	mm	1000
Sliding table stroke (Y)	mm	800
Column stroke (Z)	mm	500
Max drilling depth of gun drill (W)	mm	800
Swing axis rotation angle (A)	°	Upward 20°, and down to 35°
CNC rotary workbench (B)	°	360
CNC Indexing Table
Max loading capacity	kg	3000
Size (L*W)	mm	630*630
Spindle
Spindle taper capacity		BT40
Max spindle speed	rpm/min	6000
Power
Spindle motor	kw	11
X-axis feed servo motor	N.m	27
Y-axis feed servo motor	N.m	27
Z-axis feed servo motor	N.m	27
W-axis feed servo motor	N.m	20
A-axis feed servo motor	N.m	20
B-axis feed servo motor	N.m	20
Total power	kw	45
Cooling System (Gun Drill)
Coolant pressure range	mpa	2-15
Coolant flow range	L/min	6-85
Size & Weight
Machine size (L*W*H)	mm	6500*3800*3800
Machine weight (About)	kg	12000
System
Control system		Standard:FANUC / Optional:SYNTEC
Milling Ability
Milling range	mm	800+500

Shenzhen Joint Machinery Co., Ltd. stands as a beacon of excellence in the manufacturing and exportation of CNC lathe machines, CNC deep hole drilling machines, Swiss-type automatic lathes, milling machines, grinding machines, and more. We are unwavering in our commitment to delivering machines of the highest quality and providing exemplary service to our global clientele. We prioritize rigorous quality control and continuous improvement to ensure that every product meets the most stringent industry standards. Our offerings integrate core technologies from Taiwan and Germany, enhanced by cutting-edge production equipment and methodologies. This synergy results in machines lauded for their precision, stability, and reliability, adept at fulfilling complex and demanding machining needs. Recognized globally, our products enjoy widespread acclaim and have established a steadfast presence across Asia, Europe, South America, North America, and beyond. We cherish long-standing partnerships with international customers, fostering significant business value and mutual growth.

---
