Linear Vibrating Screen Electric Vibrator Motor

Product Description

About Us Henan Yuanben Intelligent Technology Co., Ltd. (hereinafter referred to as Yuanben) is a specialized manufacturer that focuses on designing and manufacturing intelligent vibrating screening equipment. The company is committed to the processing, production, research& development and design of new intelligent vibrating screen. Yuanben is located in the national center city, Zhengzhou, it owns more than 20 technical engineers, and cooperates deeply all along with Henan Pingyuan Mining Machinery Co., Ltd. which has years of dedicated production experience, in addition, Yuanben has its own processing research and development base.
''Build industry with wisdom, create value with wisdom'', under the promotion of "Internet+" concept, Yuanben will deeply integrate ''intelligence + digitalization'' to build an intelligent workshop and realize the intelligence of overall process. While strengthening its own equipment automation intelligence, driving the transformation and upgrading of screening industry, the industry intelligent development should be also jointly promoted.
Get a price at once! Product Description High frequency vibration motor for sieve
Introduction

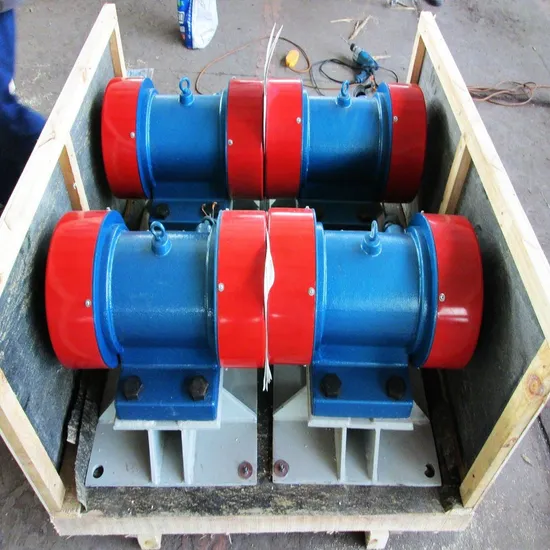

Vibration motor is equipped with a set of adjustable eccentric blocks at both ends of the rotor shaft,utilizing the centrifugal force generated by the high-speed rotation of the shaft and the eccentric block,thus the exciting force is obtained.It offer exciting vibration source for all kinds of vibrating machines such as vibrating screen, vibrating feeder, vibrating conveyor, vibrating flask shaker, vibrating crusher, vibrating molding machine, vibrating sand mixer, vibrating buffing machine, vibrating test-bed, etc.in power plant, building materials, grain, coal, mine, metallurgy, chemical industry, light industry, casting, railway, port and other industries.
Features
1.Joint utilization of motors can be adopted to the synchronization of complete and different technological requirements.
2.The exciting force direction can be changed according to the installation of vibration motor.
3.Exciting force can be adjusted continuously by changing the angle of the eccentric block
4.Fully enclosed structure,dust-proof and water-proof,it can work under high requirement environment.
5.Large vibration force, light body weight, small volume,low mechanical noise,stable vibrating frequency.
6.Vibration frequency and amplitude can be customized according to different uses.
7.Complete ranges of specification to meet the needs of various types of vibration machinery.
Get a price at once! IP Grade
IP (INGRESS PROTECTION) grade system is drafted by IEC (INTERNATIONAL ELECTROTECHNICAL COMMISSION ).IP grade is composed of two numbers, the first number represents for anti-invasion grade of external objects and dust, the second number shows the sealing degree of anti- invasion of moisture and water, if the number is greater, the degree of protection will be higher. Product Parameters Selection Conditions

♦What equipment does it work with,vibrating feeder,	♦Insulation grade:_________
vibrating screen,hopper wall vibrator,etc.?________	♦Explosion-proof is required or not:_________
♦Rotation speed:________rpm	(Ps. Yes or No)
♦Exciting force:_________KN	♦Working power supply: __V__HZ
♦Protection level:_________

Model	Excitation Force(kN)	Power(kW)	Electricity(A)	Weight (kg)
XV-1.5-2	1.5	0.15	0.38	19
XV 2.5-2	2.5	0.25	0.58	24
XV 5-2	5	0.4	1.15	37
XV 8-2	8	0.75	1.84	53
XV 16-2	16	1.5	3.48	75
XV 2.5-4	2.5	0.25	0.58	27
XV 5-4	5	0.4	1.15	43
XV 8-4	8	0.75	1.84	61
XV 10-4	10	1	2.3	75
XV 16-4	16	1.5	3.48	107
XV 17-4	17	0.75	1.8	28
XV 20-4	20	2	4.1	135
XV 30-4	30	2.5	5.75	168
XV 50-4	50	3.7	7.4	168
XV 5-6	5	0.4	1.15	48
XV 8-6	8	0.75	1.84	65
XV 10-6	10	1	2.3	65
XV 12-6	12	1	2.1	82
XV 20-6	20	2	4.1	142
XV 30-6	30	2.5	5.75	180
XV 50-6	50	3.7	7.4	200
XV 75-6	75	5.5	11	370
