Inflatable marine shipping salvage lifting rubber airbag

Product Description

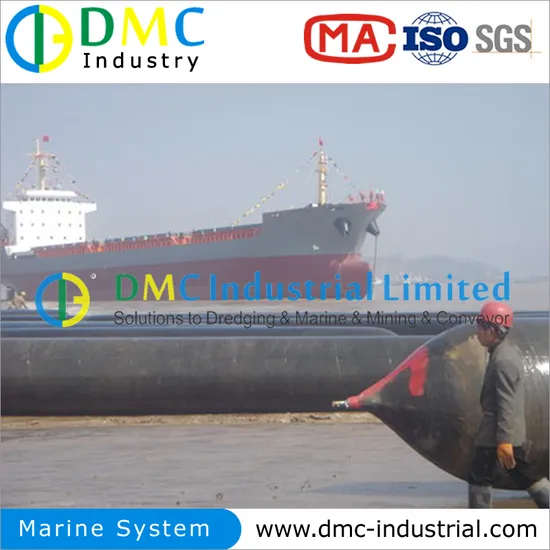

Pneumatic Marine Airbags for Ship boats Launching and Landing
DMC supply Ship launching marine airbags and Heavy Lift Pneumatic Airbags to the world with the good quality and competitive price. They are widely used in ship launching and landing, sunken ships salvage and refloatation , heavy lifting and conveying. .
Construction Features:
Ship Launching Marine Airbags, basic body consists of our rubber layers, synthetic-cord-reinforced rubber layers, are kind of a cylindrical airbags with hemispherical heads at the both ends. All of these are vulcanized together, and then compress air inside to enable in to roll. Specifications(ISO14409 Standard) Usually the diameter and number of skeleton layers of the airbag are provided by the customer. Besides, we can also recommend appropriate size according to the information provided by customers, such as ship tonnage and ship working height, etc..

DMC-4 Intensive Air Bag for Ship Launching
Diameter	Working pressure	Working height	Bearing capacity
			KN/m	Ton/m
D=1.0m	0.14Mpa	0.6m	87.96	8.98
		0.5m	109.96	11.22
		0.4m	131.95	13.46
D=1.2m	0.12Mpa	0.7m	94.25	9.62
		0.6m	113.10	11.54
		0.5m	131.95	13.46
		0.4m	150.80	15.39
D=1.5m	0.10Mpa	0.9m	94.25	9.62
		0.8m	109.96	11.22
		0.7m	125.66	12.82
		0.6m	141.37	14.43
		0.5m	157.08	16.03
D=1.8m	0.09Mpa	1.1m	98.96	10.10
		1.0m	113.10	11.54
		0.9m	127.33	12.98
		0.8m	141.37	14.43
		0.7m	155.51	15.87
		0.6m	169.65	17.31
D=2.0m	0.08Mpa	1.2m	100.53	10.26
		1.1m	113.10	11.54
		1.0m	125.66	12.82
		0.9m	138.23	14.11
		0.8m	150.80	15.39
		0.7m	163.36	16.67
		0.6m	175.93	17.95

Test of Products After the completion of production, we definitely carry out routine tests and inspections of marine airbags, including appearance inspection, dimensional deviation test, air tightness test and pressure test, which making sure our products meet ISO14409-2011standards.

---
