Charcoal Briquette Machine
Charcoal Briquette Machine can be all kind of biomass broken materials After high temperature and high pressure extrusion molding machinery and equipment, for example, wood chips, sawdust, straw, branchws, peanut shell and so on. Our company Charcoal Briquette Machine has high yield, low energy consumption and high wear resistance, low noise, simple operation, energy conservation and environmental protection advantages, Final product diameter: 30mm, 4mm, 50mm, 60mm, 70mm, 80mm, 90mm and also can be made separately designed according to customer's requirement
Product Paramenters
Model
| Feed Inlet Size
| Power
| Capacity
|
YKCB110
| ≦5mm
| 11KW
| 100-150kg/h
|
YKCB150
| ≦5mm
| 15KW
| 150-200kg/h
|
YKCB185
| ≦5mm
| 18.5KW
| 200-300kg/h
|
YKCB220
| ≦5mm
| 22KW
| 300-400kg/h
|
Technological Process
Materials→Sawdust Machine→Rotary Screen→Rotary Dryer→Ration Silo→ Charcoal Briquette Machine→Energy-saving Carbonization Furnace→Briquette Show
Recommend Products
Charcoal Briquette Machine
The Charcoal Briquette Machine is introduced above, which first extrudes wood chips into rods and then turns them into coal rods through a carbonization furnace.

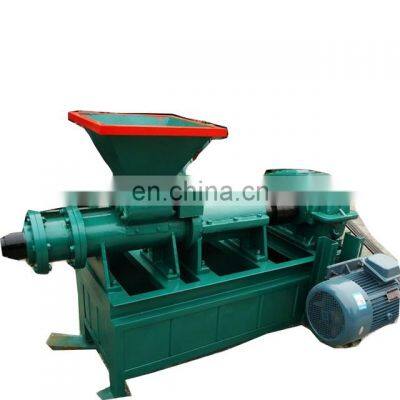

Coal Bar Machine
But This Coal Bar Machine directly extrudes pulverized coal into coal rods. The following is an introduction to the Voal Bar Machine
Coal bar machine/briquettes extruder which is also called coal stick extruder, utilize the principle of screw extrusion, and compresses the prepared coal powder into certain intensity and predetermined shape coal bar. Coal bar machine is the main equipment of fuel forming section complete equipment in Ammonia fertilizer plant and coal gas making system. It widely used to press coal powder into round/six prismatic/square coal bar with certain intensity. The new process that burning in the gas making furnace replace the traditional process that produce gas by burning lump coal and briquettes. During produce coal bars by coal bar machine, make full use of coal powder, no need to add lime, reduce the cost of fuel, improve the calorific value of coal, so it has High economic benefit. Besides, coal bar machine is with small size, no need carbonization and drying equipment, no need steam, so it can save money and reduce the floor area. At the same time, by using coal bar machine, manufacturers can effectively use cheap coal fines to replace expensive lump coal, thus reduce production cost and improve economic benefit.
The Paramenters
Model
| Capacity (t/h)
| Speed (r/min)
| Reducer
| Powder (kw)
| Briquetttes Shapes and Size
|
YKBM-140
| 1-2
| 46-60
| ZQ350
| 7.5-11
| Defined by users
|
YKBM-180
| 2-3
| 46-50
| ZQ500
| 18.5-22
|
|
YKBM-210
| 3-4
| 40-46
| ZQ750
| 30-37
|
|
YKBM-300
| 4-6
| 36-40
| ZQY400
| 55
|
|
YKBM-450
| 8-12
| 30-38
| ZQY450
| 110-220
|
|
Product Display
Company Profile
Shanghai YUKE Industrial Co. is a trustworthy enterprise specialized in developing and manufacturing energy recycling machines such as briquetting machine, briquetting press, industrial dryer, etc. We can offer the total solution for charcoal producing plant according to customer's specific requirement. YUKE owns complete processing equipment, great technology strength and scientific management method. Following strictly the standards of ISO9001, we have established a perfect quality test system for products. Now, our products have obtained the certificates of CE, GOST, and other international authority bodies.
Certifications
Partial certification
