Fully DVB-S2X S2 S 4000mAh Lithium Battery Digital Display LCD Satellite Finder V8 Finder Max Cheap Price

Product Description

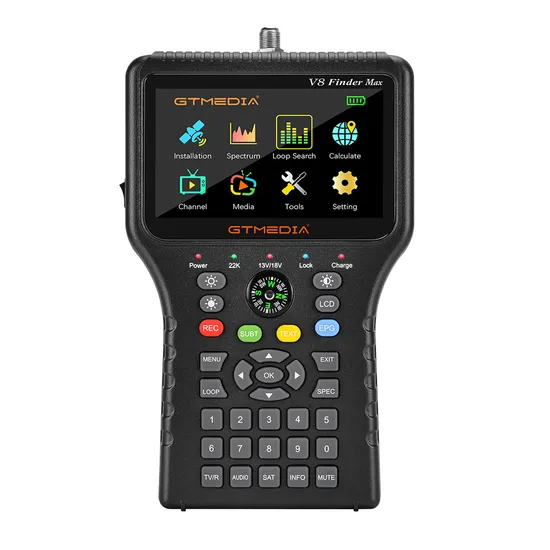

Gtmedia 4.3 Inch Tft Screen H.265 Handheld Digital Satellite Finder Gtmedia V8 Finder max
Highlight GTMEDIA V8 FinderMax is a DVB-S2X/S2/S and MPEG-2/4 H.264/H.265 (8 bit) compliant handheld combo meter, With its compact size, light weight, intuitive user's interface, long battery operational hours and rich feature set, the meter provides all functions needed for installation and verification of digital satellite TV service, antenna signal and cable signal to residential homes or multi-dwelling units.
Product Description

4.3 Inch High Definition TFT LCD Screen
Fully DVB-S2X/S2/S, MPEG-2/MPEG-4 compliant
Support H.264/H.265(8 Bit) Hardware decoding
Digital measuring device for signal strength and quality.Supports presetting all satellite information
Support Loop Search
Spectrum analyzer
Supports scan of Auto, Blind, Manual
Sound for Locking Signal
Auto Calculate Angle of AZ,EL
Supports DISEQC 1.0/1.1/1.2, Unicable, 0/22kHz Tone
Speaker Integrated
Support both AV out and AV in
Support both HDMI out
Support compass function
Support real-time power display, with low power reminder
Supports Youtube for USB wifi 2.4G
LNB short protect
7.4V/4000mAh Li-ion Battery Included
Software upgrade via USB port
Easy to carry
Specifications
TRANSMISSION STANDARDS
DVB-S2X/S2/S,MPEG-2,MPEG-4,H.264/H.265
Supports softcam: BISS auto roll, PowerVu auto roll, TNT(19.2E)
Support VCM, ACM, multi-stream, T2MI, Multi-PLP
Supports IKS: CCCAM, NEWCAM, MGCAM
SATELLITE INPUT/DEMODULATION
Connector Type	F Type
Input Frequency	950 to 2150 MHz
Signal Input Level	‐65 to ‐25 dBm
Band Switch Control	22KHz
LNB Supply	13V/18V, Max 350mA
Demodulation Type	DVB-S2 QPSK,DVB-S2 QPSK/8PSK/16APSK/32APSK, DVB-S2X QPSK/8PSK/16APSK/32APSK/64APSK
Symbol Rate	2<Rs<45Mband(SCPC/MCPC)
LCD FEATURES
LCD Type	4.3"high-resolution digital display LCD
Number of Dots	480 RGB(H) *272(V)
Active area (W*H)	95.04*53.86mm
AV output interface
Connector Type	3.5 mm jack
Video Output	CVBS
Audio Output	Stereo Audio L/R output
HDMI output connecter
Format	HDMI 1.3a
AV input interface
Connector Type	3.5 mm jack
Video Input	CVBS
Audio Input	Stereo Audio L/R input
AUDIO/VIDEO PROCESSING
Video decompression	MPEG-2 MP@HL, MPEG-1 Decoding, MPEG-4 ASP@l5 HD resolution, H.264 / H.265 MP&HP@L4, HW JPEG decoder
Resolving rate	PAL-25 frame@720*576, NTSC -30 frame@720*480
Singnal compatibility	Support conversion for different video formats
Video Format	4:3, 16:9, By Pan & Scan and Letter Box conversion
Audio Decompression	MPEG-1 Layer I/II, MPEG-2 Layer I/II
Audio Output Mode	Stereo, Mono, R/L
DATA SERVICE PORT
Conector	USB
Data Protocol	USB 2.0 interface
File Management System	NTFS, FAT32, FAT16
File Format	Media:TS,mkv, mp4, avi, flv, f4v, ts, m2ts, mov, 3gp Audio: wma,mp3 Photo: jpg,jpeg,bmp,img
PVR Option	Support recording TS files
WIFI Option	Support networking via USB WIFI
POWER SUPPLY
Li-Lon Battery	7.4V/4000mAh(The machine behind labeling shall prevail)
Battery power	Build-in Lithium battery find satellite around 4 hours Battery play time(AV input): about 6 hours
Adapter (Optional)	Support fast charge, MAX 20W
Power Consumption	Max.10W
PHYSICAL CHARACERSTICS
Product Dimension Size(W*D*H)	123*204*45(mm)
Product Net Weight	0.5kg
Packing box size(W*D*H)	260*200*57(mm)
Package weight	0.85kg
Temperature	Operation 0~+45ºC; Storage -10~+60ºC
Humidity	20~90%, non-condensed

Pictures
COMPANY PROFILE
Shenzhen YL Electronics Co., Ltd. was founded in 2011 and is located in shenzhen City, Guangdong Province.
The location is excellent and the transportation is convenient. Our main products are tv box. We have a wealth
of industry experience and are a reliable supplier. Our hold/cooperation factory has advanced production
equipment and skilled front-line employees. Knowing that the development of the company depends on
the innovation and quality of the products, we have established a quality management system to meet
the requirements of the international quality management system.
Our Services
OEM/ODM service
- Private labeling
- Packing design
- Mould design
- PCB design & IC programming
- From concept to finished product
Quality assurance
-12Month Warranty
-Samples order is acceptable
After service
- If the return is caused by the quality or the mistake from us, we can do the one by one replace for you .
- 12 months warranty
- We'll replace the broken parts with new parts in your repeat order;
- Track the order until you get the goods
FAQ
1. Can i have a sample for test?
Of course, welcome order sample.
2. Do you offer free sample ?
Usually, we will charge accordingly of the sample.rechargeable facial brush
3. Can i have our logo or brand on the device or package?
Yes, you can add your logo or brand on the device and package, there is min quantity request on them.cleansing brush cleansing brushcleansing brush
4. I don't know how to design Logo & Packing, can you help me?
Yes, we have professional designer to help our client in company packing or Logo design.
5. What's the your MOQ of this item?
1 sets is okay, our standard package is 40 pcs /carton.
6. Can i mix order?
Yes, mixed order is acceptable, we mainly offer skin care and beauty products.

---
