Model ZNS-5B API Lab filter press for drilling fulids

US$410.00-784.00 1 Piece (MOQ)

Basic Info.

Model NO.

ZNS-5B

Type

Drilling fluids and cement slurries

Application

Drilling fluids and cement slurries

Transport Package

Carton

Specification

560*425*265mm

Trademark

haitongda

Origin

China

HS Code

9031809090

Production Capacity

1000 Sets/Year

Product Description

1.Introduction

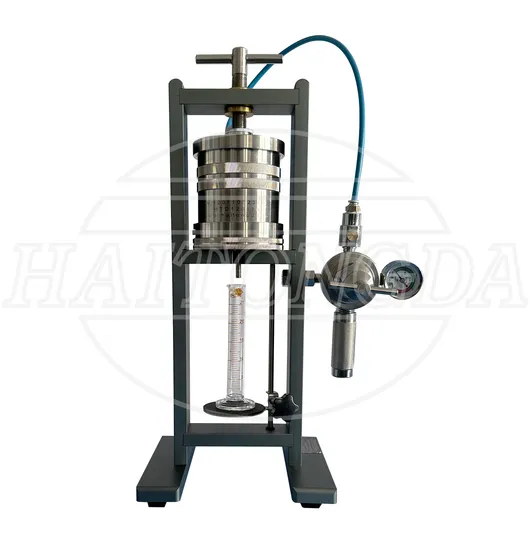

Model ZNS-5B Low Pressure Filter Press is the most effective means of determining filtration properties of drilling fluids and cement slurries. All Low Pressure Filter Press assemblies consist of these items: Mud reservoir mounted in a frame Pressure assembly and regulator Filter paper 25 ml graduated cylinder Measuring filtration behavior and wall-cake building characteristics of a mud is essential to drilling fluid control and treatment. The characteristics of filtrate, such as oil, water, or emulsion content are also important. The types and quantities of solids in the fluid and their physical and chemical interactions affect these characteristics. Temperature and pressure affect the physical and chemical interactions. Performing tests at both low pressure/low temperature and high pressure/high temperature is necessary, and these testing conditions require different equipment and techniques.
The basic filter press has a cell assembly constructed of stainless steel or aluminum material and includes the required screens and gaskets.
Working pressure is 0.69MPa and the filtering area is 45.6cm², as specified in API
standard.

Compressed oxygen should not be used as a pressure source. Fire and explosion hazards exist when using oxygen.

2.Type Specification

Model	Name	Configuration
ZNS-5B	Low pressure filter press	A set of stainless steel drilling fluid cups

3.Technical Specification

No.	Project	Model
No.	Project	ZNS-5B
1	Work stress	0.69MPa
2	Maximum cup pressure	1MPa
3	Maximum drilling fluid injection	350ml
4	Effective filtration loss area	45.6cm2
5	Net weight / Gross weight	7.08kg/8.94kg
6	Overall dimensions	310×180×490mm
7	Packing size	560×425×265mm

HOT SALES:
Certifications:
Team:
Workshop:
Warehouse:
Transportation:
FAQ:
Q1 : Are you a manufacturer or a trading company ?
A1: We are manufacturer.
Q2: What is your main brand?
A2: Our brand is Haitongda, which is famous in China and other nation. Also we do OEM.
Q3: What are your business scope and product classification?
A3:Business scope: mud analysis instrument, electronic products, special instrument, mold design and manufacturing; Instrument maintenance and sales; Import and export of goods and technologies.
Product classification: including drilling fluid analysis instrument, oil well cement testing instrument and field overall solution, including 22 small categories and over 120 products.
Q4: What is your MOQ for the order?
A4: Testers per 1 set.
Q5: What is the warranty period of your instrument?
A5: One year.
Q6: Can I get better offer if our order can be bigger?
A6: Certainly. We will give you better prices based on the quantity for your order.
Q7:What certificate do you have for your instrument?
Q7: ISO, SGS and so on
Q8: What is your lead time for our order?
A8: For new order: 3 weeks;
For stock order: 3 working days after T/T. Based on FOB Qingdao.
Q9: What is your advantage of your factory?
A9: We are the original oil ministry designated drilling fluid analysis equipment manufacturer in China, which was founded in 1968.
Q10: What is the process to become an agency?
A10: Please send us mail enquiry, then we will reply you as soon as possible.
