Factory Low Price DC Switching 150W Power Supply Constant Current LED Driver

US$8.00-15.00 500 Pieces (MOQ)

Basic Info.

Model NO.

ysl150

Driving Method

LED Constant Current

Circuit Structure

PWM Controlled

Certification

TUV, CE, RoHS, ISO9001, CCC

Pack Sealing Size

SMD

Brand

Yingjiao/OEM/ODM

Size

180×66×32mm

Experience

20 Years′experience

Quick Delievery

15-25 Days

Warranty

3 Years′ Warranty

Transport Package

Box

Specification

CCC/CE/TUV/GS/UL/CUL

Trademark

Yingjiao&OEM

Origin

Ningbo, China

HS Code

8504401400

Production Capacity

2000 PCS/Day

Product Description

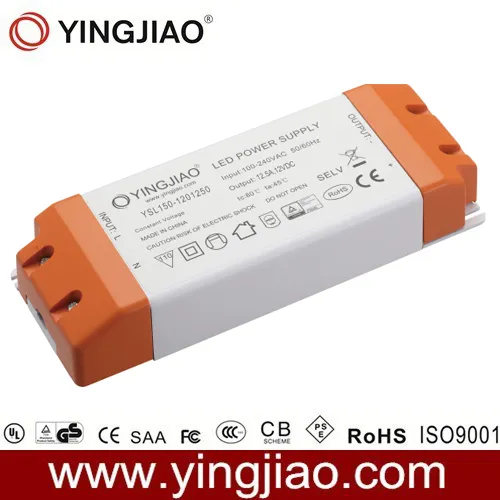

Factory Low Price DC Switching 150W Power Supply Constant Current Led Driver Model:YSL150 series
Range:80-150W
Rated Power:150W

Constant Output Current:
Model	Power (max.)	Input Voltage	Output Current (max.)	PF	Ta	Tc	L×W×H (mm)
YSL150	150W	100-240V AC	4200mA	≥0.95	45ºC	85ºC	205×71×35
Constant Output Voltage:
Model	Power (max.)	Input Voltage	Output Voltage	PF	Ta	Tc	L×W×H(mm)
YSL150	150W	100-240V AC	12V/24V	≥0.95	45ºC	85ºC	205×71×35

Features:
Safety: UL/cUL/TUV/GS/CE/CCC compliance
RoHS Compliance
High efficiency & low power consumption
LED power indicator
Short Circuit Protection
Over Current Protection
Over Voltage Protection
Light Weight & Compact
Environmental:
Operating Temperature: 0 to 40 degrees centigrade
Storage Temperature: -40 to +70 degrees centigrade
Operating Humidity: 10% ~ 90% RH Non-condensing
Storage Humidity: 5% ~ 95% RH Non-condensing
