Basic Info.
Processing Technics
Crushing-before-Mixing
Screen Mesh
Without Screen Mesh
Grinding Equipment Type
Feed Hammer Mill
Pellet Mill Type
Screw Granulator
Bulking Machine Type
Single Screw Bulking Machine
Expanding Method
Wet Expansion
Applicable Materials Shape
Short strip
Conveying Capacity
48m3/H (105 M3/H,270 M3/H)
Max. Rotating Speed
80rpm (70 Rpm,60 Rpm)
Torque
4000 Nm(7000 Nm,15000 Nm)
Weight
390 Kg (550 Kg,915 Kg)
Max. Size of Slolid
65mm(85 mm,135 mm)
Pipe Connection
150mm (250 mm,350 mm)
Structure
Conveyor System
Production Capacity
Customaized
Product Description

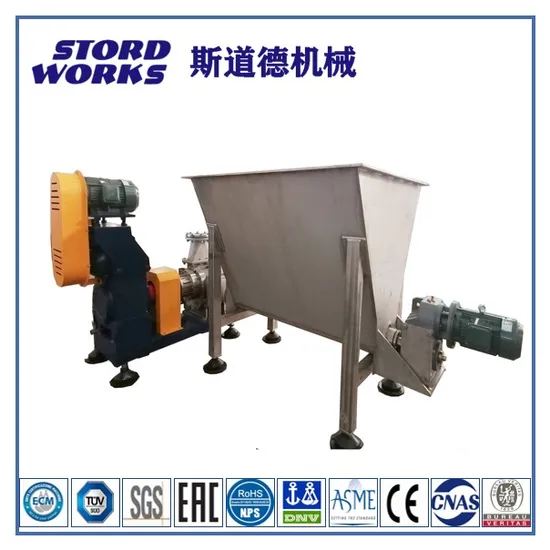

The Lamella Pumps transports raw materials with high viscosity index, such as offal and broken bones, from whole transport bodies (except feathers) taken from pigs, cattle or poultry and fish. The conveying is done in the pump, and the blades rotate, resulting in a positive offset. The Lamella pump system requires only one drive to transport large amounts of materials over long distances.
The Lamella pump is a high capacity pump, but it has low energy consumption compared with traditional conveying systems such as screw conveyors. The outstanding performance of Lamella Pump is thanks to its unique impeller blade design. The Lamella pump can move up to 200 cubic meters(7,062 cubic feet) of viscous raw material per hour,Suitable for batch or continuous rendering operations. The frequency conversion motor has a precise flow rate control, with automatic reverse function to help clear any obstacles. The Lamella pump can work with screw conveyor, screw hopper, silo and other equipment.
Company Information
Located in Fangqiao National Machinery Industrial Park, at the Taihu Lake, Yixing City, Jiangsu, China, JIANGSU STORD WORKS LTD. is home to more than 180 employees , covers an area of 25000 M2 and has more than 70 various manufacturing and testing devices, with the maximum lifting capacity of 100T and the maximum plate rolling capacity of 120mm. StordWorks has the specialized drying machine production workshop and advanced machining centers. We also have various international pressure vessels certification and abundant experiences in equipment manufacturing, such as National standard pressure vessel certification, American ASME certification, Norske Veritas DNV certification and EU PED certification. Jiangsu StordWorks adheres to the business philosophy of "Focusing on Professionalism & Quality First", and the service concept of "Customer-orientation and Exceeding Customer Satisfaction". By means of our excellent quality and perfect service, JiagnsuStord Works Ltd. sincerely looks forward to cooperating with you!
Packing & Shipping
1) Carefully check the quantity and quality of equipment before packing. 2) Good packed by plastic wrap. 3) Fittings and spare parts are packed in wooden pallet . 4) Suitable for export transport and sea freight 5) Add labels and shipping mark.
>>
