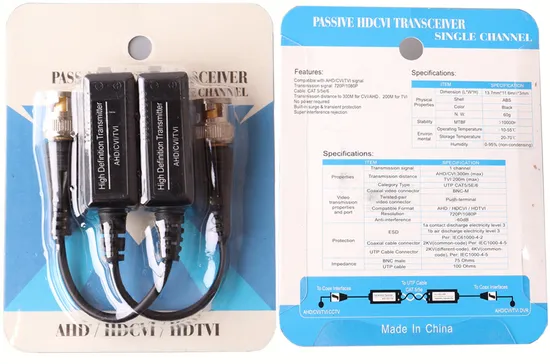

| Model | B208 | |
| Video | Transmission Signal | Single Channel HD Passive Balun |
| Compatible Format | AHD/ HDCVI/ HDTVI/CVBS Analog | |
| Resolution | 720p/1080p | |
| Max. Distance 720p | AHD/CVI 300M, TVI 190M | |
| Max. Distance 1080p | AHD/CVI 220M, TVI 190M | |
| Video Format | PAL,NTSC,SECAM | |
| Operating Frequency | DC to 42MHz | |
| Anti-interference | > 60dB | |
| Impedance | Coax, Male BNC 75 unbalanced UTP, screw terminal 100 balanced | |
| Attenuation | 1.5 dB typ Max. | |
| Wire Type | Network Wiring | One Unshielded Twisted Pair 24-16 AWG (0.5-1.31mm) |
| Category Type | 2-pins UTP cat5e/6 | |
| Coaxial Video Connector | Male BNC connector screw terminal/Push pin terminal | |
| DC Loop Resistance | 52 ohms per 1000ft(18ohms per 100m) | |
| Differential Capacitance | 19 pF/ft max (62 pF/m max) | |
| Imperance | BNC Male | 75 Ohms |
| UTP Cable | 100 Ohms | |
| Protection | Surge Protection | Renewable solid state surge protection |
| ESD | 1a contact discharge electricity level 3 per IEC61000-4-2 | |
| 1b air discharge electricity level 3 per IEC61000-4-2 | ||
| Coaxial Video Connector | 2KV (common mode) per IEC6100-4-5 | |
| UTP Cable Connector | 2KV (different code), 4KV (common code) per IEC6100-4-5 | |
| General | Housing | ABS engineering plastic |
| Power Input | No external power required | |
| Body Color | Black | |
| Dimensions(L*W*H) | 13.7*11.6*3mm | |
| Net Weight | 60g | |
| MTBF | > 10000H | |
| Operating Temperature | -10~55°C | |
| Relative Humidity | 0-95% (non-condensing) | |
