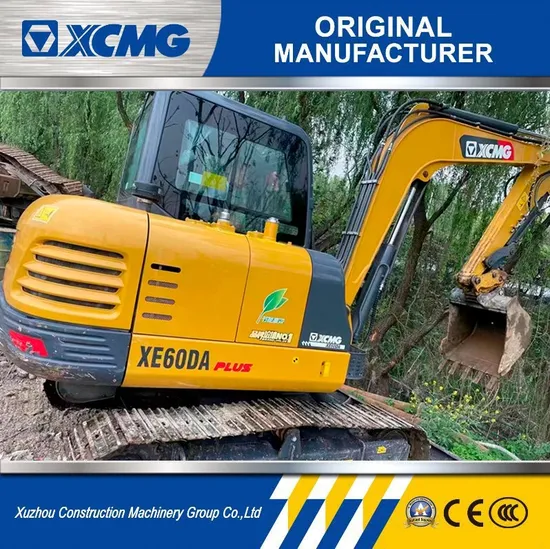

XCMG Official Xe60da Used 6 Ton Mini Small Crawler Excavator Machine

Product Description

XCMG Official XE60DA Used 6 Ton Mini Small Crawler Excavator Machine Product Description
XE60DA adopts a good engine excellent in environmental protection and energy saving. Moreover, it uses a load sensitive hydraulic system, able to guarantee operator's better controlling of the machine and better movement coordination, reduce the demand for operation proficiency of the driver; in addition, the reliability of this system has been recognized by the majority of users.
The stress analysis and structure optimization of such key components platforms, swing arms, bucket rods and lower chassis has fully guaranteed the reliability of the structural members.
The daily maintenance is sufficiently convenient and you only need to open the rear hood for maintenance of the engine oil, fuel and air filters.
1. Ecological and economical
* Adopting new environmental friendly Yanmar engine, low speed torque, low fuel consumption, high operating efficiency, reliable and durable.
* It adopts a cross-stage large displacement constant power variable pump with high volumetric efficiency.
2. Multiple applications
* Short tail design and short slewing radius can achieve flexible operation in confined space.
* Multiple additional configurations to adapt to a variety of operating requirements.
3.Comfortable operational experience
* Fresh air conditioning system to ensure the appropriate temperature.
* Toughened glass cockpit with good safety view.
* Detailed design concept improves comfort.
4. Excellent after-sales service
* Global after-sales service system and quick response mechanism.
* Real-time technical consultation and maintenance. Product Parameters

Operation Weight		6010 kg
Bucket Capacity		0.23 m ³
Main performance	Travel speed(H/L)	4.2/2.2 km/h
	Rotating speed	10 r/min
	Gradeability	35°
	Ground pressure	32.5 kPa
	Bucket digging force	48.3 kN
	Arm digging force	32.5 kN
	Maximum traction	50.5 kN
Hydraulic system	Rated flow of main pump	151.2 L/min
	Pressure of prime valve	24.5 Mpa
	Pressure of travel system	22 Mpa
	Pressure of swing system	21 Mpa
	Pressure of pilot system	3.5 Mpa
Oil capacity	Fuel tank capacity	110 L
	Hydraulic tank capacity	85 L
	Engine oil capacity	12 L
Appearance size	Overall dimensions(L*W*H)	5860×1920×2585 mm
	Width of platform	1780mm
	Width of crawler	400 mm
	Clearance under counterweight	700 mm
	Min. ground clearance	385 mm
	Min. tail swing radius	2890 mm
Working scope	Max. digging height	5630 mm
	Max. dumping height	3945 mm
	Max. digging depth	3830 mm
	Max. vertical wall digging depth	2680 mm
	Max. digging reach	6130 mm
	Min. swing radius	2460 mm
Standard	Boom length	3000 mm
	Arm length	1600 mm
	Bucket Capacity	0.23 m ³

Product Picture
Company Profile
FAQ
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted.
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC.
3: What about the delivery time?
A: 7-30 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.

---
