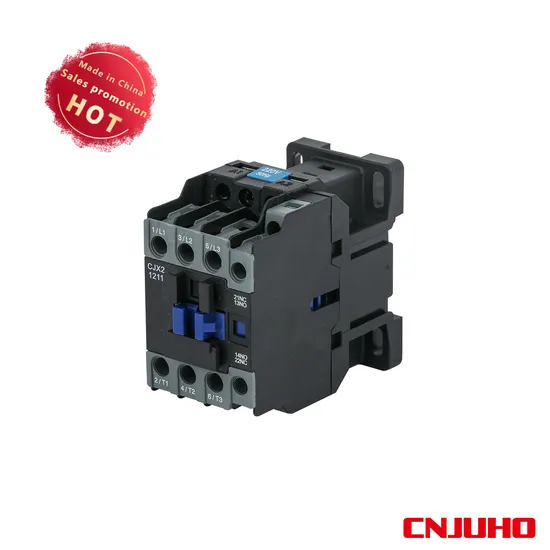

New Type Magnetic AC Contactors with CE Approval

Product Description

1.Application: JLC1-D series 660V 9-95A AC Contactor is applicable at the line of AC 50/60 Hz, rated voltage up to 660V and rated current up to 95A for remote switch, breaking and frequent starting, controlling the AC motor. Moreover, the contactor can act as the time-delay contactor, reve-rsible contactor, star-delta starter by the accessories addition such as addition of modular auxiliary contact set. Air timedelay head, mechanical interlock mechanism, etc. Moreover, it could act as the electromagnetic starter by the direct plug of the thermal relay. This product conforms to the requirement of IEC60947-4-1& GB14048.4 standards.
2.Main parameter

Type	Rated insulation voltage(V)	Conventional thermal current(A)	Rated operation current(A)	Control power(kw)					No .of contacts	Remark
				220V	380V	415V	440V	660V
JLC1-0910 0901	660	20	9	2.2	4	4	4	5.5	3P+NO 3P+NC	Installation method 1.with two screws 2.35mm din rail
JLC1-1210 1201		20	12	3	5.5	5.5	5.5	7.5	3P+NO 3P+NC
JLC1-1810 1801		32	18	4	7.5	9	9	9	3P+NO 3P+NC
JLC1-2510 2501		40	25	5.5	11	11	11	15	3P+NO 3P+NC
JLC1-3210 3201		50	32	7.5	15	15	15	18.5	3P+NO 3P+NC
JLC1-4011		60	40	11	18.5	22	22	30	3P+NO+NC	Installation method 1.with three screws 2.75mm or 35mm din rail
JLC1-5011		80	50	15	22	25	30	33
JLC1-6511		80	65	18.5	30	37	37	37
JLC1-8011		125	80	22	37	45	45	45
JLC1-9511		125	95	25	45	45	45	45

Type			JLC1-09	JLC1-12	JLC1-18	JLC1-25	JLC1-32	JLC1-40	JLC1-50	JLC1-65	JLC1-80	JLC1-95
Pick-up voltage 50/60Hz(V)			(0.85~ 1.1)Us	(0.85~ 1.1) Us	(0.85~ 1.1)Us	(0.85~ 1.1)Us	(0.85~ 1.1)Us	(0.85~ 1.1)Us	(0.85~ 1.1)Us	(0.85 ~1.1)Us	(0.85~ 1.1)Us	(0.85~ 1.1)Us
Release voltage 50/60Hz(v)			(0.2~ 0.75)Us	(0.2~ 0.75)Us	(0.2~ 0.75)Us	(0.2~ 0.75)Us	(0.2~ 0.75)Us	(0.2~ 0.75)Us	(0.2~ 0.75)Us	(0.2~ 0.75)Us	(0.2~ 0.75)Us	(0.2~ 0.75)Us
Coil power	50Hz 60Hz	Pick-up(VA)	70	70	110	110	110	200	200	200	200	200
		Holding(VA)	8	8	11	11	11	20	20	20	20	20
		Pick-up(VA)	80	80	115	115	115	200	200	200	200	200
		Holding(VA)	8	8	11	11	11	20	20	20	20	20
		Power consumption (W)	1.8~2.7	1.8~2.7	3~4	3~4	3~4	6~10	6~10	6~10	6~10	6~10
