Self Adhesive Labels Full Rotary/Intermittent Die Cutting Machine for Iml

Product Description

Feature:
This equipment is the latest research and development product, equipped with Full rotary die-cutting, intermittent die-cutting and slitting units, it adopt advanced servo control system, user-friendly operation panel, greatly improve product quality and production efficiency; with the latest full-rotary and intermittent interchangeable technology; suitable for digital printing label small and medium quantity order after die-cutting.
Product Made from Machine:
Teachnical Specifications:

Model	370
Max. speed	Rotary 120m/min Intermittent 300times/min
width	370mm
Repeat	50-444.5mm
Precision	±0.15mm
Max. unwind dia.	800mm
Max.up rewind dia.	450mm
Max.down rewind dia.	800mm
Rewind inner core size	1-6 inch(standard in 3 inch )
Thickness of material	20-300um
Air source	0.8Mpa

Detail Configuration: Electrical parts:
-Servo motor: Innovance, China, 3 sets
-Control unit: Innovance emotion controller, China
-HMI: Paneimaster Taiwan brand, 10" for main machine
-Inverter: China 2 pcs, waste rewind, final roll rewind
-Inverter motor: China 2 pcs, for waste rewind, final roll rewind
-Servo motor reducer: Shimpo Japan, 3 sets
-Magnetic powder: China, 2 pcs of 5kg
-Web guide: Eurdow, China
-Track sensor: Leuze Germany, 1 pcs
-Bearing: NSK or NTN Japan
-Pneumatic parts: China
-Timing belt: China
-Low voltage: Schneider France

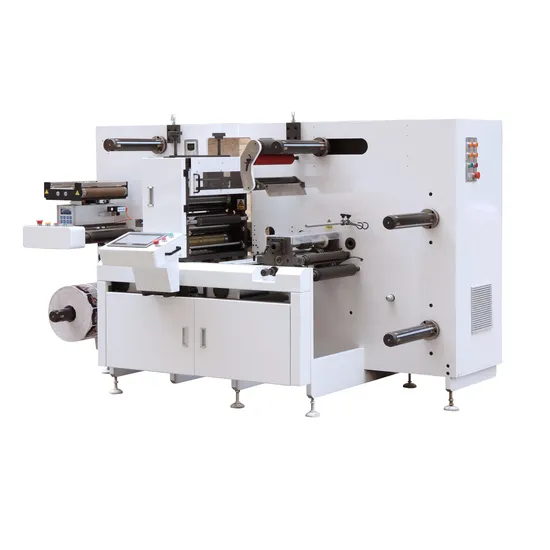

Machine Detailed Pic for Reference:

About us
Our company focus on researching and designing(R&D), quality control and after sale service, so we have the ability to provide high quality, reasonable priced products. Since so many years our printing and packaging machines have been well accepted by customers from more than 20 countries.
Packing and Loading of Machine:

---
