Horizontal Machining Center Hmc1290 Inverted T Structure 360rotating Turntable High Efficiency Milling Machine

Product Description

Product Description

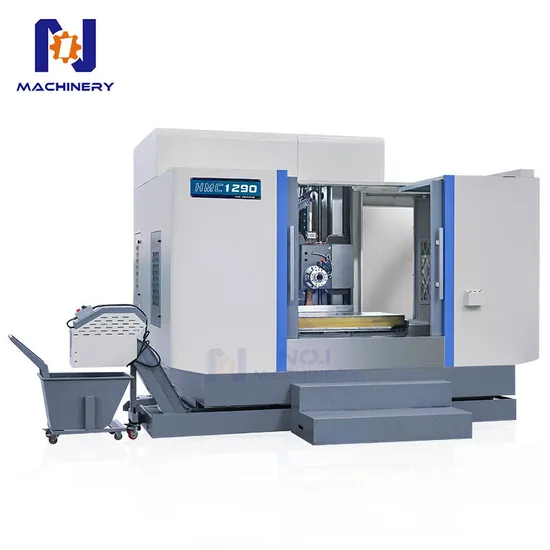

The HMC1290 is a cross table horizontal machining center known for its high precision and efficiency in machining various parts. The worktable can move in the X and Z directions, and the spindle box moves in the Y direction on the column, forming a cross motion mode. With its robust machine body and rigid cast iron bed, the HMC1290 can handle large workpieces and heavy loads. It is equipped with a high-speed spindle and a tool changer, enabling quick tool changes and enhancing production efficiency. The machine center also boasts multi-axis control capabilities, the worktable can rotate 360 degrees, enabling complex cutting operations and multi-sided machining.
Specification

Item Model	Unit	HMC1075	HMC1290
Size of worktable	mm	1300*600	1360*700
Table travel around	mm	1000	1200
Forward and backward travel of workbench	mm	750	900
Up and down stroke of spindle box	mm	600	700
Distance from spindle center to worktable surface	mm	150-900	140-1040
Distance from spindle end to table center	mm	90-690	150-850
T-shaped groove for table	mm	5-18*100	5-18*122
Maximum load-bearing table	kg	800	1000
Main motor power	kw	7.5/11	15/18.5
Spindle Taper		BT40	BT50
Spindle speed	rpm	8000	6000
Cutting feed rate	mm/min	1-10000	1-10000
Fast speed	m/min	24/12/24	20/12/20
X/Y/Z ball screw specification	-	4012/5010/4012	2010/5010/5010
X/Z Axis rail specification	-	45/55	55/45
Tool Magazine	-	Disc	Disc
Maximum tool diameter	mm	112/200	112/200
Maximum too length	mm	400	400
Maximum weight of tool	kg	18	18
Tool exchange time	sec	3	3
Minimum set unit of machine tool	mm	0.001	0.001
X/Y/Z orientation accuracy	mm	±0.0075	±0.0075
X/Y/Z repeated positioning accuracy	mm	±0.005	±0.005
B axis positioning accuracy(table rotation)	"	10"	10"
B axis repeated positioning accuracy(table rotation)	"	5"	5"
Weight of machine tool	kg	7500	10000
External dimensions	mm	4600*3200*3000	4800*3400*3100

Details Display
Overall casting, more stable structure.

30 Tools libraryATC
castings inverted T shape

40 chain Tools libraryATC
castings inverted T-shaped

the worktable can rotate 360 degrees

BT50 Taiwan high speed spindle

cross table can move in the X and Z directions
Taiwan HIWIN 3 axis roller linear rails


SIEMENS,KND,FANUC,MITSUBISHI,GSK, SYNTEC 22MA control systemS (optional)
