Transient Electromagnetic Sounding Equipment Time Domain Transient Electromagnetic Tem Tdem for Groundwater and Mineral Exploration Survey

Product Description

Transient Electromagnetic Sounding Equipment Time Domain Transient Electromagnetic TEM TDEM For Groundwater And Mineral Exploration Survey

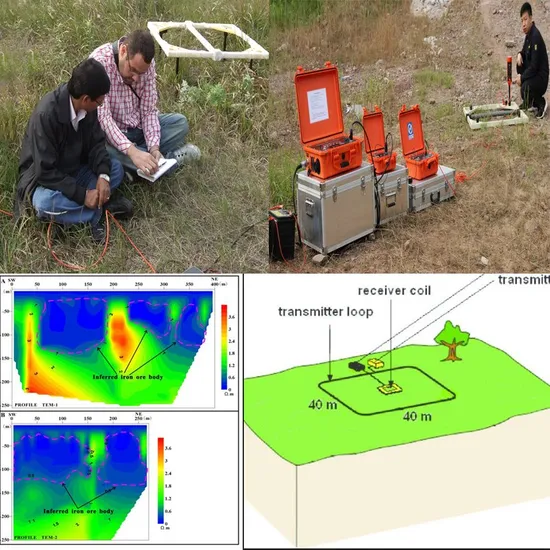

WTEM Transient Electromagnetic Sounding Equipment is a geophysical method used in exploration for deep-water and mineral resources. The Time Domain Exploration (TDEM) system consists of a receiver and a transmitter, typically with wire loop configurations, which are crucial components for conducting surveys in challenging environments.
1. High Sensitivity: The TDEM receiver is designed to detect weak electromagnetic signals even in demanding underwater or mineral-rich settings.
2. Time Domain Capability: Both the transmitter and receiver can operate in the time domain, enabling precise measurements of electromagnetic responses over time.
3. Flexible Loop Configurations: The wire loop design allows for versatile setups, suitable for varying survey requirements and depths.
4. Digital Signal Processing: Advanced processing capabilities enhance signal quality, aiding in the identification of subsurface structures.
5. Robust Construction: Built to withstand harsh environmental conditions, ensuring durability and reliability during field operations.
1. Deep-Water Surveys: TDEM systems are ideal for mapping the subsurface structure beneath deep water bodies, providing insights into geological formations and potential resource deposits.
2. Mineral Exploration: TDEM surveys are effective in identifying mineral deposits underground by analyzing the electrical conductivity variations in the subsurface.
3. Resource Assessment: The TDEM method aids in evaluating the quality and quantity of resources such as minerals and groundwater reserves.
4. Environmental Studies: TDEM technology can also be used for environmental assessments, monitoring groundwater contamination, and studying aquifer properties.

Number of channels: 1 channel (expandable to 3 channels)

Preamplifier gain: 8, 32 times

Main amplifier gain: 1,2,4,8,16,32,64,128 times

Pass band: 0 ~ 50KHz (linear phase filter), 0 ~ 400kHz for full pass.

Power frequency suppression: ≥ 80dB

A / d bits: 16 bits

Minimum sampling interval: 1 μ s

Total frequency difference of crystal oscillator: ≤ 5 × 10-9

Number of channels: ≤ 128

Stacking times: 1-9999

Synchronization mode: cable synchronization

GPS + quartz clock synchronization

Power supply: built in 12V rechargeable battery (or external 12V battery), working time ≥ 10h

PDA: Windows Mobile 6.0 system, 320 × 240 true color, 64MB flash ROM / 64MB SDRAM, 1GB CF card, can store data of no less than 100000 measuring points, Bluetooth, infrared, serial port.

Volume: 340 × 295 × 152mm3

Weight: 5.3kg

Working temperature: - 10 ºC~ + 50 ºC

---
