| | INFRASTRUCTURE MAINTENANCE MANAGEMENT | GNMS |
| |
| | GROUPS: Contact system |
| | |

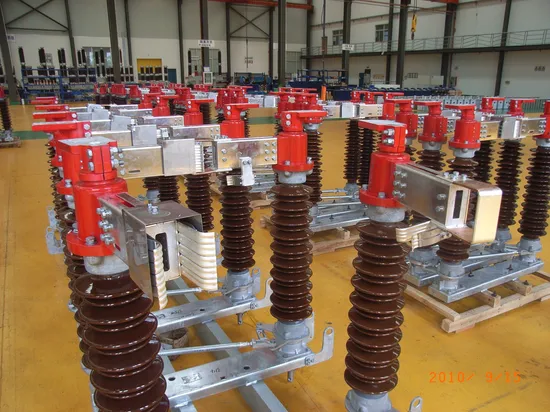

| Contact arm for adaptation to 145kV disconnectors. TO 2000 A. |
|
| TECHNICAL DATA GUARANTEED |
| Subgroup: disconnectors | | | | Required QuantitY |
| Denomination: Contact Set central locking arms | | | 10 Units. |
| Equipment Type: disconnectors 145 KV. | | | |
| ITEM | DESCRIPTION | UNIT | REQUIRED. | OFFERED | Comment |
| 1 | Manufacturer | | (*) | HEMG | |
| 2 | Country of origin | | (*) | China | |
| 3 | Manufacturing Standards | | (*) | IEC | |
| 4 | Manufacturing Technology | | (*) | COPPER BENDING ,AL-CASTING | |
| 5 | Technical Specifications |
| 5.1 | Electric data | | | | |
| 5.1 | Nominal Tension | KV | 138 | 138 | |
| 5.2 | Tension Maxima Services | KV | 145 | 145 | |
| 5.3 | Nominal Current | A | 2000 | 2000 | |
| 5.4 | Effective current short duration (Icc) | KA | 40 | 40 | |
| 5.5 | Dynamic current | (kAcr) | (*) | 100 | |
| 5.6 | duration of short circuit | seg. | (*) | 4.0 | |
| 5.7 | Electrical resistance heating test | | (*) | ≤95 | |
| 5.2 | Physical Data | | | | |
| 5.2.1 | Weight of the complete arm | kg | (*) | 45 | |
| 5.2.2 | Arm exterior material | | (*) | COPPER | |
| 5.2.3 | Material Point of contact: | | Silver coated copper | Silver coated copper | |
| 5.2.4 | Terminal Type | | bimetallic strip or plate section 4 hole.(No Borne or Bulon) | PLATE SECTION 4 HOLE | |
| 5.2.5 | Central locking | | type B. B | B | |
| 5.3 | Dimensional Data | | | | |
| 5.3.1 | Contact arm length | mm | 1800 | 1,800.0 | |
| 5.3.2 | Diameter of terminal holes for power connections | mm | 14 | Φ18 | |
| 5.3.3 | Distance / holes To attach primary connection | Pulg. | 1-3/4" | 50mm*50mm | |
| 5.3.4 | Diameter hole for fixing the insulator: | pulg. | 5/8" crosswise. ( + ) | 5/8" CROSSWISE | |
| 5.3.5 | Connecting plate size power-primary | mm | 100 x 100 x 15.5 | 100*100*20 | |
| 5.3.6 | Extension length to extend outside of the contact arms 80 mm | | Yes | YES | |
| | | | | | |
| | INFRASTRUCTURE MAINTENANCE MANAGEMENT | GNMS |
| |
| | GROUPS: Contact system |
| | |
| Contact arm for adaptation to 145kV disconnectors. TO 1600 A. |
|
| TECHNICAL DATA GUARANTEED |
| Subgroup: disconnectors | | | | Required Quantity: |
| Denomination: Contact Set central locking arms | | | 50 Units. |
| Equipment Type: disconnectors 145 KV. | | | |
| ITEM | DESCRIPTION | UNIT | REQUIRED. | OFFERED | Comment |
| 1 | Manufacturer | | (*) | HEMG | |
| 2 | Country of origin | | (*) | China | |
| 3 | Manufacturing Standards | | (*) | IEC | |
| 4 | Manufacturing Technology | | (*) | COPPER BENDING AND CASTING AL | |
| 5 | Technical Specifications |
| 5.1 | Electric data | | | | |
| 5.1 | Nominal Tension | KV | 138 | 138 | |
| 5.2 | Tension Maxima Services | KV | 145 | 145 | |
| 5.3 | Nominal Current | A | 1600 | 1600 | |
| 5.4 | Effective current short duration (Icc) | KA | 40 | 40 | |
| 5.5 | Dynamic current | (kAcr) | (*) | 100 | |
| 5.6 | duration of short circuit | seg. | (*) | 4.0 | |
| 5.7 | Electrical resistance heating test | | (*) | ≤95 | |
| 5.2 | Physical Data | | | | |
| 5.2.1 | Weight of the complete arm | kg | (*) | 45 | |
| 5.2.2 | Arm exterior material | | (*) | COPPER | |
| 5.2.3 | Material Point of contact: | | Silver coated copper | Silver coated copper | |
| 5.2.4 | Terminal Type | | bimetallic strip or plate section 4 hole.(No Borne or Bulon) | PLATE SECTION 4 HOLES | |
| 5.2.5 | Central locking | | type B. | B | |
| 5.3 | Dimensional Data | | | | |
| 5.3.1 | Contact arm length | mm | 1800 | 1,800.0 | |
| 5.3.2 | Diameter of terminal holes for power connections | mm | 14 | Φ18 | |
| 5.3.3 | Distance / holes To attach primary connection | Pulg. | 1-3/4" | 50mm*50mm | |
| 5.3.4 | Diameter hole for fixing the insulator: | pulg. | 5/8" crosswise. ( + ) | 5/8" CROSSWISE | |
| 5.3.5 | Connecting plate size power-primary | mm | 100 x 100 x 15.5 | 100*100*20 | |
| 5.3.6 | Extension length to extend outside of the contact arms 80 mm | | Yes | YES | |
| | | | | | |
