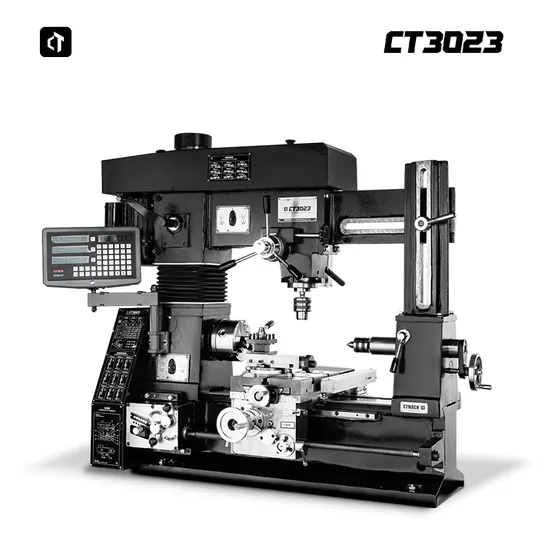

CT3023 3 in 1 Mini Lathe Mill Drill Combo Lathe

Product Description

Turning
Turning diameter of bed workpiece	300mm
Distance between two thimbles	460mm
Swivel diameter of middle carriage	168mm
Spindle through hole diameter	20mm
Spindle taper	MT3
Longitudinal travel (slide crate)	350mm
Lateral travel (middle carriage)	200mm
Processing metric thread pitch range	1~3mm
Longitudinal feed	0.066~0.226mm/r
Infeed	0.037~0.127mm/r
Movement of tailstock sleeve	110mm
Tailstock sleeve tapered hole	MT2
Spindle revolution series and range	Level 9 160~1600 r/min
Turning motor power	750W
Drilling and milling
Drilling diameter	24mm
Bore diameter	35mm
End Mill Diameter	12mm
Face milling diameter	63mm
Tapping range	M4~M12
Drilling and milling spindle taper	MT2
Spindle speed series and range	Level 9 250~2010 r/min
Motor Power	750W
Face Specifications	210x280mm
Table T-slot width	12mm
Maximum stroke of drilling and milling spindle	95mm
The minimum distance from the spindle end face to the table	140mm
Drilling and milling head box vertical lifting stroke	240mm
Drilling and milling spindle span	370mm
Swivel degree of headstock	360°
Other
Machine Tool Dimensions	125x65x110cm
Machine tool packing size	132x72x121cm
Net weight	310kg
Gross weight	400kg

Features
1. Adopting the closed structure of the gantry frame, the turning, drilling and milling is more stable and the precision is higher.
2. Norton tool handle, convenient and quick turning thread.
3. The CT3023 multifunctional machine tool is equipped with two 750w motors, 9 kinds of turning speeds of 200-1800rpm for the turning spindle, and 9 kinds of speeds of 250-2010rpm for the drilling and milling spindle.
4. The taper of the tailstock sleeve is MT2, and the stroke length is upgraded to 110mm.
5. 280×210mm ultra-large range workbench, more convenient to clamp.
Size/Weight
The appearance/package size of the product is measured manually, and there is a small error. It is normal, and the specific object shall prevail.
CT3023 Machine package size 320x720x1210mm
CT3023 Net weight/gross weight of machine(excluding floor cabinet) 310/400KG
Identification

1.Basic group gear shifter	14. Small tool holder moving hand wheel
2. Expansion group shifting handle	15. Locking handle of gantry frame
3. Positive and negative feed handle	16. Tailstock sleeve locking handle
4. Bedside combination switch	17. Longitudinal locking handle of workbench
5. Lifting locking screw	18. Tailstock sleeve moving handle
6. Fix the motor bolts	19. Tailstock locking handle
7. Lifting operation shaft	20. Horizontal clutch handle
8.Drilling and milling combined switch	21. Nut opening and closing handle
9. Handle rod	22. Move the hand wheel laterally
10. Drilling and milling clutch pin	23. Longitudinal movement of the hand wheel
11. Micro-feeding handwheel	24. Longitudinal clutch handle
12. Sliding sleeve locking handle	25. Horizontal locking handle of the working table
13. Knife holder fixed handle

Product display
Details introduce
Standard Accessories(Attached in Machine)

---
