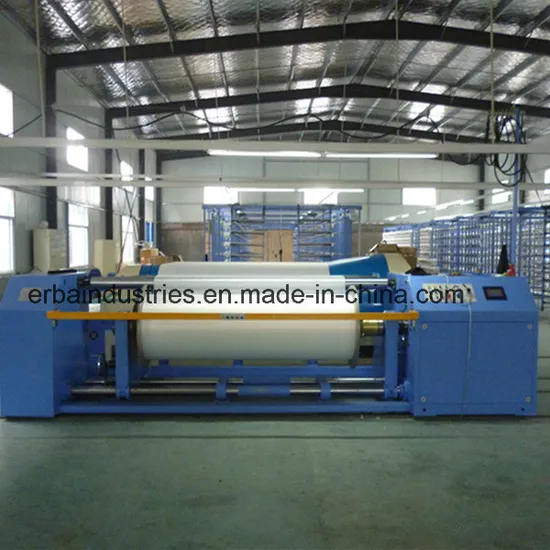

Electronic High Speed Sectional Warping and Beaming Machine

Product Description

Main technical parameters
(1) Working width 2300-5500(as your requirement)
(2) Beam flange dia. ≤φ1000mm
(3) Warping speed 0~600m/min
(4) Beaming speed 0~150m/min
(5) Power 3Phase AC 380V 50HZ
(6) Drum dia 1026mm
(7) Cone angle 9°(1:6.3)
(8) Cone length 1320mm
(9) Dynamic balance accord with GB9239 balance quality standard 6.3grade
(10) Drum drive 11kw/15kw three-phase asynchronous motor
(11) Speed deviation <0.5%
(12) Speed fluctuate ±0.2%
(13) Main bearing SKF-bearing
(14) Warping operation table traversing ball lead screw fixed, servo drive nut
(15) Guide rail ball linear rail
(16) Driving motor 0.75kw AC servo motor (Delta)
(17) Section traversing speed 0.001~9.999mm/r
(18) Section traversing deviation 0.02%
(19) Section location automatic
(20) Forward and back movement of warping table servo motor, ball lead screw drive
(21)Guide rail ball linear rail
(22) Yarn guide roller brake electro-magnetic brake
(23) Tension control constant
(24) Safety infrared stop motion
(25) Main control PLC
(26) Screen 10.4 inch Delta colorful touch screen
(27) Technical parameter calculations of warping length, roller length, strip, speed, displacement, etc.

Technical Features
1. Axial displacement of warping table is control by accurate servo motor. Start point and section location can be set automatically.
2. Space reed and section are kept in equidistance which is optional .
3. Warping brake is clamp type. Beaming brake is external steel strip damping type, which eliminates the noise and uneven tension problems occured in traditional.
4. It is equipped with microcomputer and PLC, with function of total length count, roll lenth count, section count, broken end memory and stop motion of full total length or warp, etc.
5. Touch screen shows info clearly, easy to operate.
6. Section tension is constant during warping and beaming.
7. Steel cone with angle 1:6.3 is good for kinds of warping.
8. Wax and pressure device are optional for beaming machine.
9. Creel number and pitch are as your requirements
10. Warp stop motion and static eliminator are optional.

---
