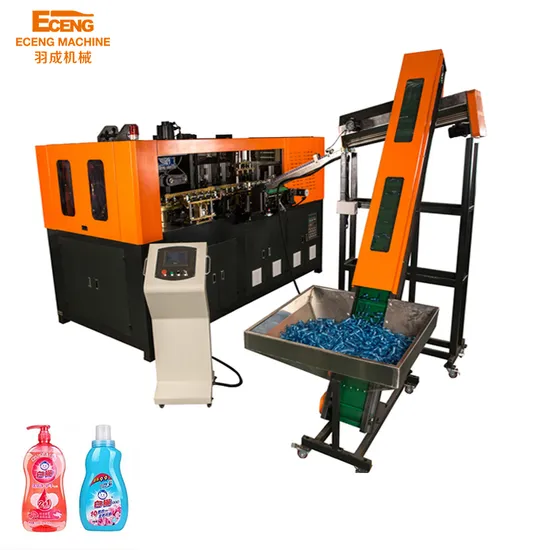

Liquid Soap / Hand Washing Shampoo/ Detergent Pet Bottle High Speed Fully Automatic Blow Molding Machine

Product Description

Liquid Soap / Hand Washing Shampoo/ Detergent PET Bottle High Speed Fully Automatic Blow Molding Machine
model:q6000 Main Features:
Q series linear bottle blowing machines are used in the production of PET water bottles, hot filling bottles, carbonated beverage bottles, edible oil bottles, and pesticide bottles.Eceng Machinery's Q series linear bottle blowing machine stretches preforms by using a servo motor-controlled stretch rod. The advantage is that it can be stretched in sections,and positioning of the preform is at first in order to ensure the verticality of the preforms during stretching, then secondary stretching.Ensure the uniformity and consistency of each preform stretching.At the same time,bottle blowing machine has a fast stretching speed and precise position.
Q series linear bottle blowing machine features:
1.stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system.
2. production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety.
3. servo transmission system, high positioning accuracy, fast speed, good stability and reliability.
4. suitable for flexible production of small quantity and various bottle shape,wide range of applications,meet customer needs.
5. increase energy using efficiency,increase productivity per unit of time.
6. manual and automatic methods of operation, human-machine interface control, simple operation.
7. servo transmission system, high positioning accuracy, fast speed stability and good reliability.
8. safety self-locking device in each mechanical action,when a certain process fails, the program will automatically switch to a safe state.
9. heat and noise are significantly reduced compared with YCQ series.
10. less than 0.2% scrap rate for finished bottle .
Technical parameter

Item		Q6000
Bottle type specification	Cavity	4
	Theory output	5500-6500
	Max. volume	2L
	Bottle mouth maximum overall diameter	28-38mm
	Bottle biggest diameter	105mm
	Bottle maximum height	330mm
Power specifications	Light tube quantity	32pcs
	Light tube power	1KW
	Maximum heating power	32KW
	All electric machine installation	42KW
	Actual consumption	25KW
Air pressure specification	Work pressure	7-9kg/c
	Low-pressure gas consumption	1000L/min
	Blow bottle pressure	25-35kg/c
	Higher -pressure gas consumption	3000Ltr/min
Frozen water specification	Work pressure	5-6 kg/c
	Temperature range	10ºC
	Consumption	8000kcal/hr
	Frozen water flow	138L/min
Machine specification	Size of the machine	4.1x1.6x1.9
	Weight of the machine	3.9ton

Product Details: 1,Auto-loader improves working efficiency,accurate transportation,reliable and durable,raw materials are completely free of moisture,pollution,foreign matter, and loss during feeding process.Realize transportation process of feeding process, avoid danger of high-altitude feeding, reduce labor intensity and increase production efficiency.
2,New clamping system,upgraded on the basis of the original ones,increase mould clamping speed and output,greatly reduce mold clamping noise.
3,Adopt infrared lamp heating, strong penetration, preform rotation heating, track revolution, heating evenly, fast and reliable; heating lamp,reflector width and height can be adjusted to suit preform heating of different structure,with automatic temperature-removal device to ensure the constant temperature of oven.
4,Q series bottle blowing machine adopts advanced microcomputer PLC control system, stable performance; servo transmission system, high positioning accuracy, fast speed, stable and reliable.

---
