Factory Direct Sales Customized Tractor Matched Pto Driven Hay Cutter Lawn Mower

Product Description

Products Description

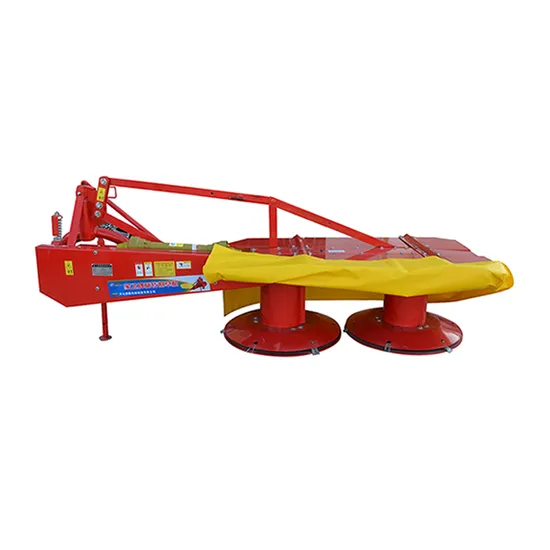

Drum Mower
reaps all kinds of feed plants, grass, meadow grass, heath and wild plants bordering the roads with blades rotating at a high annulus velocity and existing in both of the 2 drums rotating reversely to each other and leaves them behind in the form of barrel. With the advantage of adjustable cutting height and the high quality of the cutting height, the nutrient values of the plant are preserved and drying is made possible in a short time.

With its little power requirement, it operates in a high-quality manner without tiring the tractor.
Drum Mower range consists of manual swingback models and hydraulic lift. Cutting widths covering 1.35 and 1.65 meters.
Width 1.35 Meters

Width 1.65 Meters

Manual swing back models

Hydraulic lift models

Poland style 3 point linkage

Turkey style 3 point linkage

Poland style Knife

Turkey style Knives

With iron frame cover and plastic cover

Without iron frame cover and plastic cover

Details Images
3 point linkage mounted & PTO shaft
3 point linkage mounted for hanging and PTO shaft as power support
Heavy belt drive systems & Steering shaft drive
used to power Drum Mowers avoids expensive maintence common to most mower types, and enables long periods of low cost operation.
6 Knives/blades per unit
Each Drum has 3 knives,
Manganese steel blade
High Strength stainless steel rust resistance knives
Product Paramenters

Model	9G-1.35	9G-1.65
Number of Drum	2	2
Number of Knives	6	6
Working Width(m)	1.35	1.65
Dimension(mm)	2700*900*1030	2700*800*1300
Weight(kg)	289	300
Hydraulic	Optional	Optional
Iron Cover	Optional	Optional
Matched Power(HP)	20-50	30-80

Our Advantages

Drum mowers are lighter and smaller than disc mowers.

Drum Mowers can be driven with less horsepower.

Durability. Drum mowers are easily the most rugged of the hay mower types.

They rarely sustain damage even from striking an unmovable object.

High ground speeds. A drum mower can be run at even higher speeds than a disc mower, and double the speed of a sickle bar.

Low power consumption. This feature is important particularly with older utility tractors of modest horsepower.

Carbon steel spindle

NSK bearing available

Standard PTO shaft with cover

Company Profile






Shuoxin, Sure thing.
Hebei Shuoxin Machinery Manufacturing Co., Ltd has been in the agricultural machinery industry for more than 30 years, the product range covering spraying machines, fertilizer spreaders, manure spreaders, mowers, rakes, land levellers and so on. In the 30 years' service for agriculture field, Shuoxin has grown into an enterprise that integrates multiple business modules such as Design, Manufacture, Service and Information Survey. Shuoxin agricultural machinery have done a important work to nutrition supply and plant diseases & insect pests control for crops such as wheat, cotton, corn, rice, orchards and vegetables. With the ISO System certificates and CE production certificates, Cooperating with Shuixin can guarantee the partners with advanced machine products, reduced labor cost, improved work efficiency and promoted product revenue.
Certifications
Product packaging
Iron Farme Packing
All the machines are fixed in the Iron Frame by steel wire, the Frame use the steel which is thicker than 3mm. Strong enough to carry and protect the machine.
Black plastic film will also protect the machine from rain and sun shine.

All the frames is welded according to the machine size, to make sure the minimum size and weight.

---
