Semi Automatic Fly Ash Concrete Cement Hollow Brick Block Maker Making Machine

Product Description

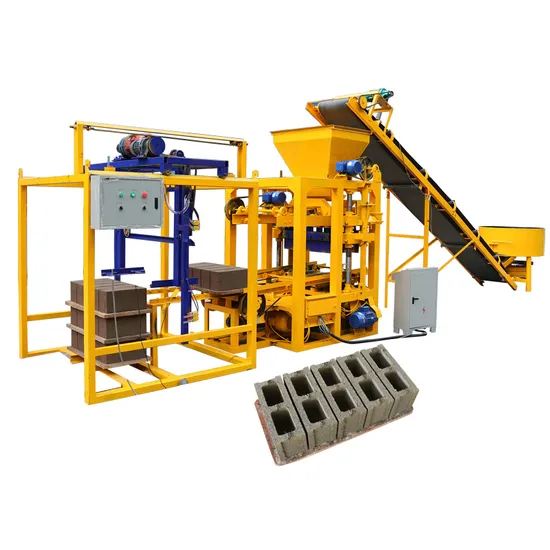

QTJ4-24 semi automatic fly ash concrete cement hollow brick block maker making machine
Technical parameters

Total rated power	12.35KW	Block yard area	50M2
Daily capacity	2000-3000 pieces	Power voltage	380V/220V AC
Pallet quantity	600-700 pieces	Labor quantity	2-3 people
Water consumption	3-5T/day	Forming period	25-30S

block machine introduction

Main featrues: The machine adopts four column guiding design. It is a new semi-automatic brick making machine developed by absorbing the advantages of various small and medium-sized equipment in the past. The vibration system is equipped with high-power motor and specially developed vibration box, which greatly improves the excitation force and compactness. It has one controller cabinet, which makes the button control more convenient. Its automatic material dropping system, automatic push-pull die design and automatic brick discharging system greatly improve the production efficiency. By changing the mold, the equipment can produce all kinds of hollow bricks, solid bricks and non colored tiles, and the practicability is greatly improved.

Production Capacity table

Size (LXWXH)mm	Pieces/mold	Pieces/Hour	Pieces/Day
Hollow block 400x200x200	4	480	3840
Hollow block 400x150x200	5	600	4800
Hollow block 400x100x200	7	650	5200
Solid block 400x200x200	4	480	3840
Paver 200x100x60	10	720	5760

Features:
1. Double door design, 4-column guide.
2. Special vibration box design, large exciting force and fast forming speed
3. Push button control of control cabinet for convenient operation
4. Automatic unloading, automatic push-pull die and automatic brick discharging greatly improve the production efficiency



QTJ4-24 semi automatic fly ash concrete cement hollow brick block maker making machine












(1) Q: what is the material for this machine ?
A: you can use concrete material, plus a little cement.
(2) Q: How many kinds of block can be made by this machine ?
A: by changing mold, this machine can make all type design brick ,block or even paver.
(3) Q: Will you provide spare parts for this machine ?
A: we will provide you one year free spare parts.can support machine working for many years
(4) Q:Will you provide installation support?
A: we will provide installation video and manual book.online video avaiable also.

QTJ4-24 semi automatic fly ash concrete cement hollow brick block maker making machine

---
