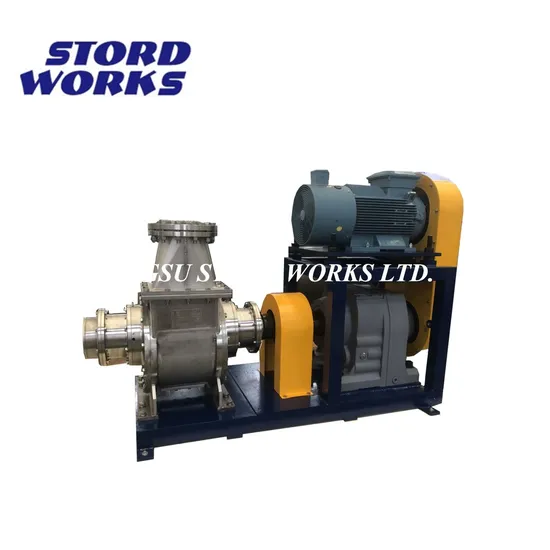

Stordworks Positive Displacement Lamella Pump for Fish Meal Plant

Product Description

Product Overview
Lamella Pump is mainly used to convey liquid containing large particles and solid-liquid mixture with high viscosity e.g. pre-broken animal by-pro
duct,fish,pet food,etc.
Advantages
1. Lamella pump is ideal for filling all types of cookers and other processing equipment in a closed system,which reduces odour.
2. Even though the lamella pump is high capacity pump,they have low energy consumption compared with traditional conveying systems.
Technical Description
Lamella pump can be delivered with pump housing in carbon steel or stainless steel in all sizes to suit individual requirements.
Lamella pump is manufactured with replaceable wear parts in special steel.The lamella pump has only four moving parts and it can be equipped
with mechanical sealing or packing sealing.
Depending on the material properties,the lamella pump can be driven by either an gear motor or a hydraulic motor.
Main Technical Parameters of Product

Technical Parameters	Type/Unit	LP25	LP35	LP45
conveying capacity	m3/h	48	105	270
Max. rotating speed	rpm	80	70	60
Lift	m	10	25	75
Torque	Nm	4000	7000	15000
Weight	kg	390	550	915
Max. size of solid	mm	65	85	135
Pipe connection	mm	150	250	350

---
