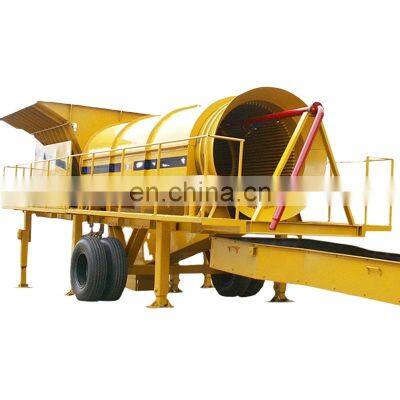

Trash classification recycling trommel screen
Trommel screen is a very widely used machine in sorting technology. It is used to control the sorting of garbage by the particle size, and the sorting accuracy is high. The barrel of the drum screen is generally divided into several sections, depending on the specific situation, the screen holes are arranged from small to large, and the screen hole diameter on each section is the same.
Scope of application1. Used for grading large and small stones and separating soil and stone powder in the stone yard.2. Used for sand and stone separation in sand and stone yard.3. The coal industry is used for the separation of lump coal and coal powder and coal washing (components of coal washing machinery).4. Used in chemical industry and mineral processing industry to classify large and small blocks and separate powdery materials.
Details Images
Working principle
The drum mesh device is installed on the rack at an angle. The motor is connected to the roller device via a reducer through a coupling, and drives the roller device to rotate around its axis. When the material enters the roller device, due to the inclination and rotation of the roller device, the material on the screen surface is turned and rolled, so that the qualified material (the product under the screen) is discharged through the outlet at the bottom of the rear end of the drum Upper product) is discharged through the discharge port at the rear of the drum. Due to the turning and rolling of the materials in the drum, the materials stuck in the screen holes can be ejected to prevent the screen holes from being blocked.
Product Characteristics
1. High vibrating force with unique eccentric structure. Adopt advanced construction, making the vibrating force powerful.2. The beam and case of the screen are connected with high strength bolts without welding.3. Simple structure, easy to repair.4. Adopt tire coupling and soft connection makes operation smooth.5. High efficiency, easy maintenance, sturdy and durable.
Product Paramenters
Model
| Drum Size
(mm)
|
Feed Size(mm
| Screen Pore(mm)
|
Capacity
(t/h)
| Rotary Speed(r/min)
| Power
(kw)
|
Weight(t)
|
YTS800×2000
| Φ800×2000
| ≤10
| 1-10
| 10-15
| 20
| 1.5
| 1.6
|
YTS 1000×2400
| Φ1000×2400
| ≤15
| 1-15
| 20-50
| 15-19
| 4
| 3.3
|
YTS 1200×3000
| Φ1200×3000
| ≤20
| 1-15
| 50-100
| 13-18
| 5.5
| 4.3
|
YTS 1500×3000
| Φ1500×3000
| ≤20
| 1-20
| 100-150
| 13-18
| 7.5
| 5.3
|
YTS 1500×4500
| Φ1500×4500
| ≤20
| 1-20
| 100-200
| 13-18
| 7.5
| 6
|
YTS 1800×4800
| Φ1800×4800
| ≤30
| 1-30
| 200-250
| 13-18
| 7.5
| 7.5
|
YTS 2000×4000
| Φ2000×4000
| ≤50
| 1-50
| 200-300
| 13-16
| 11
| 9
|
