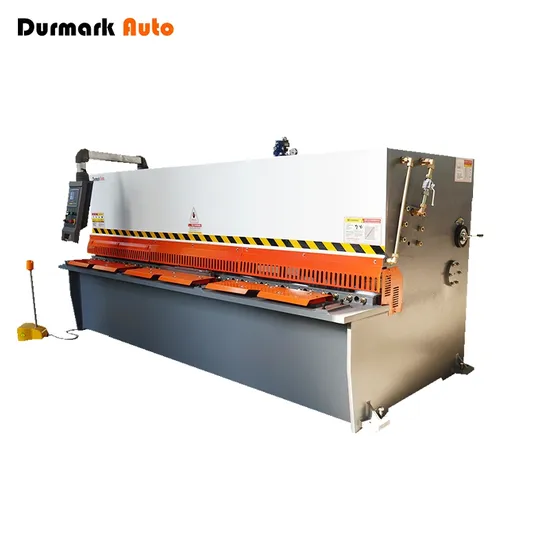

QC11K-8*3200 Shearing Guillotine Cutting off Machine for Small Metal Cutting Machinery Supplier

Product Description

QC11Y-8*3200 sheet metal shearing machine hot sale
Main feature
1. Steel welded structure, stress elimination by vibration, high mechanical strength, and exceptional rigidity
2. The hydraulic drive type structure, the cutter saddle circles a fixed axis for circle moving.
3. Decrease the force of fulcrum through leverage to prolong working life
4. Nitrogen cylinder return, simplifying the hydraulic system to make running more stable.
5. with fast and flexible gap adjusting mechanism for high shearing accuracy
6. Equipped with Lighting Alignment Device for easy shearing
7. Back Gauge size and shearing times controlled by CNC system, back gauge with high precision ball screw, stable operation and precise positioning.
8. The CNC system adopts frequency conversion control technology, with multi-step programming function, simple and easy to operate.
9. Safety barrier device all around the machinery, electrical cabinets equipped with Open door cut-off function, emergency stop button around front and back, protective cover foot switch to ensure safe work
Technical parameter

NO	Item	Value	Unit
1	Max cutting thickness	8	mm
2	Max cutting width	3200	mm
3	Plate strength	450	N/mm2
4	Shearing angle	0.5º-1.5'	degree
5	Back-guage max distance	600	mm
6	Stroke time	16	time/min
7	Distance between columns	3400	mm
8	Blade length	3300	mm
9	Worktable height	810	mm
10	Main mptor power	7.5	kw
11	Dimension	4000*1500*1580	mm

VIDEO FOR REFERENCE:
https://lifumachinery.en.made-in-china.com
Workshop
Service
Pre-sales Service
1. Inquiry and consulting support
2. Sample testing support
3. Recommend the most suitable machine according to customer's purpose
4. Factory visiting welcomed

After-sales Service
1. Training how to install the machine
2. Training how to use the machine
3. Warranty 1 year
4. Engineers available to service machinery oversea
