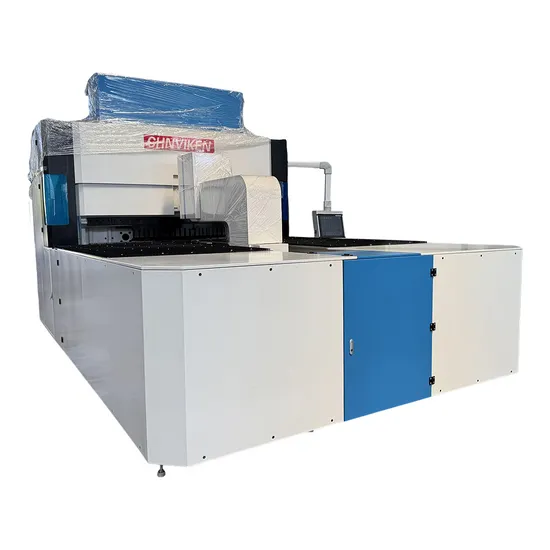

High-Precision Fully Automatic 1200 Pressure Center Panel Bender for Sheet Metal Processing Flexible Steel Arm Bending

Product Description

Product Description * Industry 4.0 architecture, which can be upgraded smoothly.
* Fast speed, only 0.2 seconds per time.
* Rapid prototyping of sheets, high consistency.
* Low power consumption.
* Simple maintenance and low cost.
* High degree of automation, simple operation, low labor requirements.
* No need for molding, complex shapes (right angles, non-right angles, etc. folded up or down) can be freely designed and produced at any time.
* Applicable to a wide range of materials, mainly stainless steel, cold-rolled sheet, etc.
* Compatible with various loading and unloading methods: manual loading and unloading, self-propelled robotic arm loading and unloading, docking robotic arm loading and unloading are optional.
* Viken intelligent bending center has rich software and hardware interfaces, laying a good foundation for intelligent factories.
* The control system realizes 15-axis concurrent linkage in the true sense, the bending action is smooth, and the mechanical operation is highly coordinated.
* The unbalanced load detection system can effectively protect the machine and the sheets.
* The panel thickness detection system can effectively protect the machine and reduce the waste of sheets.
* The cloud operation and maintenance management system can monitor the operation of the machine in real time, and can carry out all-round customized management of the company's business.
* Friendly man-machine interface, easy to understand, flexible programming.
* For sheets with non-standard size, different positioning datums can be selected according to the shape of the sheets, and the shearing error of the sheet is controlled on the first bending edge to ensure the dimensional accuracy after forming.


Product Parameters

Feeding structure	Pressing Arm
Model	VP-1200YB	VP-1400YB	VP-2000YB	VP-2500YB
Max.bending width(mm)	1200	1400	2000	2500
Motor power(KW)	25	28	38	45
Average power(KW)	11	13	20	23
Total weight (tons)	6.5	12	16	19
Max.Bending size(L*W)(mm)	1200 * 1000	1400 * 1250	2000 * 1250	2500 * 1250
Machine size(L*W*H)(mm)	3600*1730*2200	3800*1800*2500	5100 * 2650 * 3100	5700*3000*3200
System minimum accuracy(mm)	0.001
Max bending speed(time/second)	0.2
Max feeding speed(m/min)	90
Max. Bending height(mm)	170 - 300
Min. Bending height(mm)	3
Min.arc radius(mm)	0.5
Rated power(V)	380
Noise(dB)	50
Min. Panel width(mm)	0.35
Double side forming min. Inner size(mm)	140
Bending angle(°)	0-180
Four side forming min. Inner size(mm)	140 * 190
Work table structure	Brush
User operating environment	Win7 or above system
Max. Bending width	UTS 515N/mm2 304 stainless steel 1.5mm
	UTS 410N/mm2 cold panel 2.0mm
	UTS 265N/mm2 aluminum panel 3.0mm

Main Part Brand

CNC Control system	Viken Intelligent	Viken independently developed a multi-axis concurrent linkage CNC system.
servo motor	Joint R&D	Joint R&D of full closed-loop system, perfect match with Viken control system, the highest efficiency in the industry. Single max. Motor power 22KW
Screw rod	Nanjing Technical Equipment	The domestic top screw manufacturer Nanjing Technology 8020 heavy-duty grinding grade screw has more stable transmission and higher precision.
Bearing	NACHI	Japan NACHI original high-load ball screw injection molding machine special bearing 60TAF13X, the bearing ball diameter is up to 16mm, and each axis has 12 bearings.
Line rail	Nanjing Technical Equipment	Nanjing Technical heavy-duty high-precision P3-level 55 roller-type linear guide has greater bearing capacity and higher precision.
Lathe bed	Viken Intelligent	Viken independently designed the high-grade casting body, using high-grade QT500-7 and gray iron 250 castings to effectively ensure the stability under high tonnage impact force
Tools	Viken Intelligent	Viken's patented tool, with carburizing treatment process, high-frequency quenching and overall quenching and tempering, More wear-resistant, longer service life
Reducer	Joint R&D	Adopt high-precision helical gear planetary reducer, with stronger carrying capacity
Coupling	TECMEN	Sino-German joint venture brand
Electrical components	Schneide r	French Brand
Oil system	Taiwan Yuxiang	Taiwan brand

---
