Compact Construction Ease of Maintenance Closed Impeller Slurry Pump for Mining Slurry Processing

Product Description

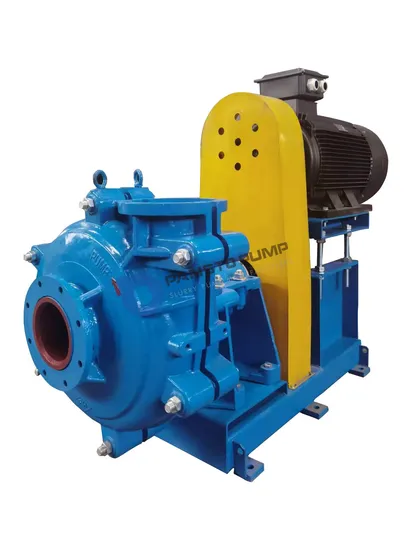

PH Series Slurry PumpThe horizontal slurry pump is a cantilever centrifugal slurry pump, which is suitable for conveying abrasive or corrosive slurry and is widely used in metallurgy, mining, petroleum, chemical industry, coal, electric power, transportation, river dredging, building materials and municipal engineering and other departments.
Pansto PH pumps are fitted with thicker wear parts and large-duty frames, suitably transporting highly abrasive high-density slurry or lower-density high-head slurry. Within the maximum allowable working pressure range of the pump, multiple stages can be used in series.
For PHJ pumps, the wetted parts of the pump are made of rubber materials. Its pump body, pump cover, and transmission parts are the same as PH pumps; it is suitable for conveying fine particles and corrosive slurry.
Detailed Photos
Product Parameters
Technical Parameters

Model	Distribution power P(KW)	Clearwater performance
		Flow Q(m³/h)	Head H(m)	Rotational speed n(r/min)	Efficiency η%	Cavitation allowance NPSH(m)	Weight (Kg)
PHB-40	2.2-15	3.6-20	5-68	1200-3800	40	2-4	91
PHB-50	2.2-15	7-48	7-62	1200-3200	45	3.5-8	118
PHC-75	4-30	21-86	12-65	1300-2700	55	4-6	191
PHC-100	5.5-30	50-150	9-45	1000-2000	71	4-6	263
PHD-100	7.5-60	68-160	10-52	1000-2200	71	4-6	363
PHD-150	15-60	72-360	12-56	800-1550	65	5-8	626
PHE-150	22-120	93-385	12-63	800-1600	65	5-8	728
PHE-200	18.5-120	360-820	10-61	500-1100	72	2-9	1473
PHR-200	110-300	360-820	10-61	500-1140	72	2-9	1836
PHST-250	45-560	630-1300	11-60	400-850	71	4-10	3750
PHST-300	55-560	800-1900	7-58	350-730	82	6	4318
PHST-350	75-560	1200-2600	13-60	300-600	77	3-10	4609
PHTU-400	160-1200	1368-3000	11-60	250-550	79	4-10	10000

Product Diagram
Certifications
Certificates
Company Profile
Company Profile
At present our products involve more than a dozen series and more than 100 varieties. The main products are horizontal slurry pumps, vertical slurry pumps, rubber-lined pumps, gravel pumps, froth pumps, desulfurization pumps, filter press feed pumps, dredge pumps, sewage pumps, submersible slurry pumps, and spare parts. The company has a number of high-quality, high-level, and experienced technical and management elites. The material can be adjusted according to the actual working conditions of customers, so as to improve the wear resistance and corrosion resistance of the pump and greatly prolong the service life of the pump. Our products are widely used in beneficiation, metallurgy coal, electric power, petroleum, chemical industry, sand excavation, urban sewage, environmental protection, and other industries.
WorkshopWorksWorkshophopWorkshoWorkshop
Product Accessories
Application
Product Transportation
FAQ
FAQ
1. What Products does Pansto Pump mainly produce?
Pansto mainly produces horizontal slurry pumps, vertical slurry pumps, rubber lined pumps, gravel sand pumps, froth pumps, desulfurization pumps, filter press feed pumps, dredge pumps, sewage pumps, submersible slurry pumps, and spare parts.
2. Is Pansto a direct factory or trader?Yes, Pansto is a direct Slurry Pump Manufacturer with an Export and Import License, having its own foundry workshop, machining workshop, heat treatment equipment, and assembly workshop, as well as advanced quality inspection equipment.
3. Can you provide OEM or ODM service?
Yes. OEM Service is an important part of our business. Pansto Pump accepts OEM business as samples or drawings of all kinds of pumps and casting spare parts. And more we offer ODM service too.
4. What is your warranty period?
We provide one year of unconditional warranty on our products for manufacturing defects.
5. What about delivery time?
Normally our production time is within two weeks. Please confirm before ordering.
6. The Min MQQ?The MQQ is one set of pump or spare parts.
