US$199.00-369.00
|
1 Piece
(MOQ)
|
Basic Info.
Pixel Configuration
1R, 1G, 1B
Display Function
Video Display
Average Power Consumption
300W/Sqm
Pixel Density
15625dots/Sqm
Display Type
LED Video Display
Certification
CE, RoHS, CCC, ETL
Module Resolution
32X16mm
Cabinet Resolution
128X96dots
Screen Brightness
6000nits
Transport Package
Wooden Case
Production Capacity
6000sqm/Month
Product Description
FS SERIES PRODUCE FEATURES:
. High brightness and good quality by adopting high quality leds.
. Modular design, flexible cabinet size to meet up with different requests.
. High polymer flexible mask, no mosaic phenomenon ,better contract ratio.
. Great uniformity and screen flatness.
. Anti-UV module mask, Anti-Oxidation module frame with protection from deformation.
PRODUCT SPECIFICATIONS:
| NO. | Item | Parameters |
| 1 | Pixel Pitch(mm) | 8 |
| 2 | LED Configuration | 1R1G1B |
| 3 | LED Type | SMD3535 |
| 4 | Screen Resolution | 15625dots/sqm |
| 5 | Module size(mm) | 256x128 |
| 6 | Module resolution(dots) | 32x16 |
| 7 | Scan method | 1/4 constant current drive |
| 8 | Cabinet size(mm) | 1024x768 |
| 9 | Cabinet resolution(dots) | 128x96 |
| 10 | Cabinet material | Iron / Aluminum |
| 11 | Brightness(cd/sqm) | ≥6000 |
| 12 | Viewing angle | H:140°/ V:140° |
| 13 | Grey Scale | 14bit |
| 14 | Refresh rate(Hz) | ≥1920 |
| 15 | Ave. power consumption (W/sqm) | 300 |
| 16 | Max. power consumption(W/sqm) | 900 |
| 17 | IP grade | F:IP65 / R:IP54 |
| 18 | controller | Novastar / Linsn |
| 19 | Maintenance | Rear service |
| 20 | Color(T) | >281 |
| 22 | Input Voltage(V) | AC 110V-220V +/-10% |
| 21 | Frame frequency(Hz) | 60 |
| 22 | Working humidity | 10~95%RH |
| 23 | Working temperature | -30ºC~60ºC |
| 24 | Certificates | RoHS / CE / CCC |
Our service:
1. Your inquiry related to our products or price will be replied in 24hrs
2. The size can be change as you give.
3. What we show is some of our current models, welcome to give us your own ideas.
4. Protection of your sales area, ideas of design and all your private information
5. (Top Quality) + (Reasonable Price) + (Responsible After Service) = (Successful & Win)
LED display Panel photos:

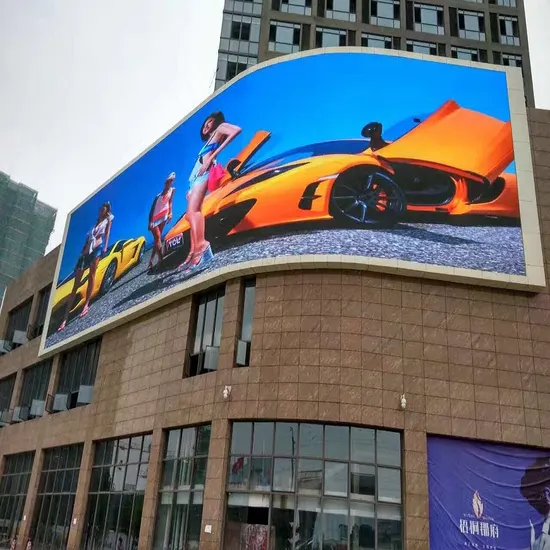

LED Display Project With CKGLED Brand:
Wooden case Package:
Certificates:
>>
