Pet Needle Punching Nonwoven Fabric Making Felts Production Line

Product Description

Pet 6meter Geotextile nonwoven production Line of AoLong Product Parameters
Production process: A percentage of polyester staple fiber ,hollow staple polyester and opened and blended by opener, then carded and lapped with required thickness, and set by needle and setting.

Width:	6500mm
Product Name	geotechnical Fabric, west Fabric ,needle felt fabric
Max Width of Product	6000mm
Thickness	2-7mm
Product GSM	80--800g/m2
Product Capacity	100~500kg/h
Proper raw material	polyester,polypropylene, fiber

Installation Instructions

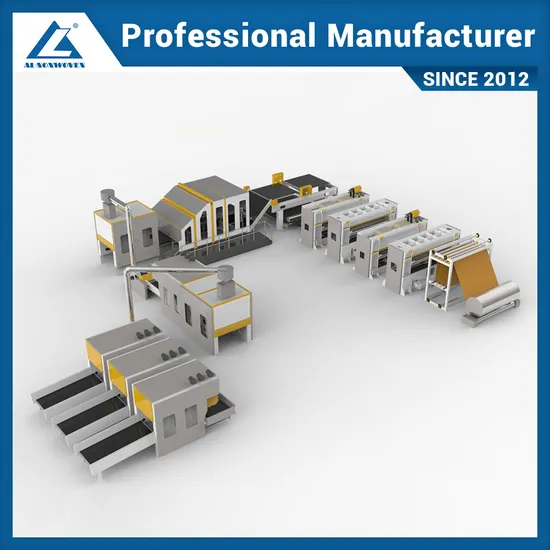

Production Line Processing:Weight type bale opener →pre-opener→big cabinet blender → main
opener →feeder machine →carding machine →cross lapper machine →FBC → pre-needle punching machine →main needle punching machine →ironing → winding &cutting machine
Bale Opener
all kinds of fibers in bundles, then transfer them to next procedure via blower fan. It is equipped with strong magnet to absorb metal impurities. The pre-opening is by slice -style roller to reduce fiber damage.

Pre-opener
1machine Width:1500mm
2 Breaking part with Box type seal structure;
3Break roller φ402 seamless steel pin board,nail plate adopts wood ;

Big cabinet blender
1.Working width:1800mm
2. Storage capacity:Max=400kg/h;
3. frame:8mm Q235;
4.Dia. of stripper roller and even roller:420mm(With nail);
5.Rotate speed of stripper roller and even roller:280r/min

Main opening
1.Machine Width:1500mm
2. Breaking part with Box type seal structure;
3.Break roller φ402 seamless steel pin board,nail plate adopts wood ;
4. Conveying lattice with PVC material lattice, steel plate used 1.5mm.inout lattice motor reversing device ,synchronous roller device .

Vibrating Feeder 1.Machine Width: 1800mm
2. Output: Matching with carding machine
3. Conveying line speed0.5-3m/min(matching with carding machine)
4. Spike lattice is wooden bar with steel nail,bottom with sealed canvas
5.Front and back installed with 2sets of photoelectric automatic linkage control,the height can be adjustable
Double cylinder and Double Doff Carding Machine Working Width: 2500mm
Mechanical type: Double Cylinder double doffer four clutter
Output line speed:50m/min
4. Main cylinder dia 1230mm with 5 sets working zones,
5. Four rollers feeding with frequency control, installed with anti-metal alarm and auto-reverse function

Final Product
Packaging & Shipping
NUDE PACKING , WOODEN CASE IS OPTIONAL. CASE PACKING:CARDING MACHINE, LAPPER AND ELECTRIC BOXES WOODEN CASE PACKAGED.OTHER MACHINES NUDE PACKAGING.ANY DAMAGE IN TRANSPORT OF MACHINES IS NOT DUTY OF THE SELLER.
Company Profile
DongYang AoLong Nonwoven Equipment co. , Ltd. is a professional manufacturer Of PP spun bonded fabric production lines, PET needle punching production lines and special application treatment equipments like hydrophobic, antialcohol (blood, oil, static, aging, bacteria, UV) and fire retardant, which integrates project design processing.

we have completed numerous project in 13 years in different countries. We have our own exporting license with ISO and CE certificate.We have installed numbers of PP spunbond nonwoven fabric machine lines in China local market and India,Bangladesh, Turkey,Russia, Vietnam, U.A.E,Indonesia, Thailand,Brazil,Uzbekistan, South Africa etc.
After Sales Service
FAQ
A:How to contact you?B:You could contact us by TM, wechat, whatsapp, email or call us directly.A:Are you factory or trading company?B:We are factory with trading company. That is to say, we produce machines and we export to customers by ourselves.A. How I get right Machine for me , If I have no ideal about the machine ?B: It doesn't matter. Tell me what kind of fabric that you want the machine , how much you want to produce and factory szie etc. We will design for you.A How to make sure your machine's quality?how about the service?B: Each machine gets ISO9001:2008,CE, SGS. And warranty is one year. you can enjoy the service within production lifetime.A.I already have one factory but there is a little of different in the size ,For example the height can't meet the 13m , only 12m?B:Don't worry. Your machine will be customized.A. How I get right Machine for me , If I have no ideal about the machine ?B: It's does't matter. Tell me what kind of fabric that you want the machine , how much you want to produce and factory szie etc. We will design for you.

---
