US$3,500.00-4,500.00
|
1 Piece
(MOQ)
|
Basic Info.
Usage
Marine Excavator, Mining Excavator, GM Excavator, Home Use Small Excavator
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Certification
CE, ISO9001: 2000, EPA
Engine Brand
Koop 192f Diesel/ Changchai/B&S Gasoline
Travelling Control
Mechanic
Transport Package
Acctording to Your Request
Production Capacity
5000pieces/Year
Packaging & Delivery
Package Size
300.00cm * 220.00cm * 220.00cm
Package Gross Weight
1000.000kg
Product Description

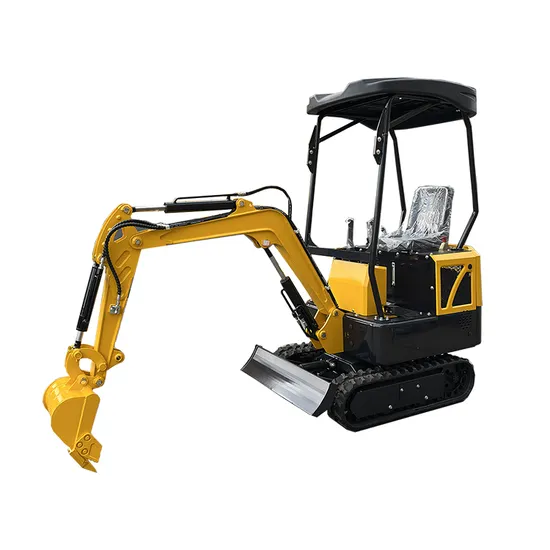

Epa Approved Construction Machinery Micro Excavator 1 Ton Chinese Mini Excavator 1 T Excavator Mini Digger
| NO. | Specification | Unit | WS-15 | WS-15PLUS |
| 1 | Operating Weight | kg | 1100 | 1150 |
| 2 | Bucket Capacity | m³ | 0.3 | 0.3 |
| 3 | Bucket Width | mm | 400 | 400 |
| 4 | Travel Speed | Km/h | 2---3 | 2---3 |
| 5 | Grade Ability | % | 35 | 35 |
| 6 | Engine brand | / | Laidong 380 | Laidong 380 |
| 7 | Rated Power | kW | 14.7 | 14.7 |
| 8 | Cylinders Quantity | / | 3 | 3 |
| 9 | Cooling type | / | Water | Water |
| 10 | Fuel consumption | L/h | Water Cooling | Water Cooling |
| 11 | Travelling Control | / | Mechanic | Hydraulic Pilot |
| 12 | Overall Length | mm | 2200 | 2200 |
| 13 | Overall Width | mm | 940 | 940 |
| 14 | Overall Height | mm | 2170 | 2170 |
| 15 | Counterweight ground clerance | mm | 385 | 385 |
| 16 | Track length on Ground | mm | 1200 | 1200 |
| 17 | Track shoe width | mm | 180 | 180 |
| 18 | wheel Gauge | mm | 740 | 740 |
| 19 | Track Extension Range (additional function) | mm | 940-1100 | 940-1100 |
| 20 | Swing Angle(L&R) | ° | 60 | 60 |
| 21 | Min.Front Swing radius | mm | 1570 | 1570 |
| 22 | Max.Diiging radius | mm | 2500 | 2500 |
| 23 | Max.Digging Depth | mm | 1500 | 1500 |
| 24 | Max.Digging Height | mm | 2590 | 2590 |
| 25 | Max.Dumping Height | mm | 1850 | 1850 |
Various models of mini excavators:
WS-17 WS-18 WS-15
WS-13 WS-12 WS-08
Hot Product
DT350 DT260 DT230
DT65 DT160 DT180
DW80 DW88 DW150
Company Profile
Established in 2014, Wishope Machinery focus on construction & agricultural machinery products manufacturing and export for around 10 years. The R&D team has fully learned the design concepts of Japanese and Korean hydraulic excavators, with years of sales and modification, all the product design is very mature and stable. Over 250 employees and 22 senior engineers. We export small to big excavators to over 20 countries such as Indonesia, Malaysia, Colombia, and mini excavators exported to the USA and to European countries.Wishope Hydraulic Excavators - innovative construction machinery: Digging, excavating and shoveling are the main tasks of the excavator. Whether in civil engineering digging a pit or dredging in a body of water: Our hydraulic excavator offers the optimum machine for every task.Get an overview of all micro excavators and find the right construction machine for your application. A wide range of attachments are available for our machines. Excavator buckets and shovels, vibrators and hammers, and grabs make your excavator a real working machine.China's excavators are growing at a high annual export sales rate of about 15% in the past 3 years. There are big Chinese excavator like our Dootech. After decades of technological precipitation, Chinese excavators have been able to find a balance between price and quality in a very balanced manner, so as to achieve high export sales. Packaging & Shipping
Our Advantages
What Kinds of Excavators We Can Provide?Hydraulic excavators are divided into many types according to the tonnage of the model. 1-3 tons are called micro excavators, 6-13 tons are called small excavators, 15-39 tons are called MIDI excavators, and more than 40 tons are called large-scale excavators.We can provide all kinds of crawler excavators, including Dootech brand with Korean technology, mini long-reach excavators with Japanese technology, etc.At the same time, we also customized accessories, such as the modification of long arms, OEM amphibious excavators, and the modification of excavator attachments, the spare parts of various brands of excavators.
>>
